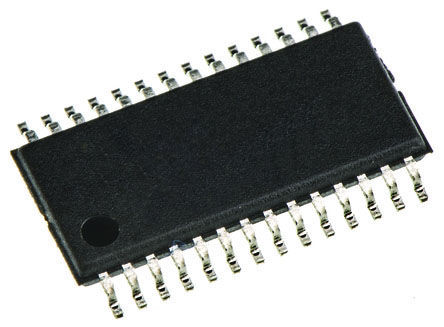

Image is for your reference only,please check specifications for details

TPS767D325PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC35670096
Category:
Voltage Regulator
Package:
HTSSOP-28
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS767D325PWP LDO Voltage Regulator IC, Fixed, 2 Output, 2.7V to 10V in, 350mV drop, 1A out, HTSSOP-28
Stock Locations:
Availability:
17 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.49

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description
The TPS767D3xx family of dual voltage regulators offers fast transient response, low dropout voltages and dual outputs in a compact package and incorporating stability with 10-µF low ESR output capacitors.
Dual Output Voltages for Split-Supply Applications
Output Current Range of 0 mA to 1.0 A Per Regulator
3.3-V/2.5-V, 3.3-V/1.8-V, and 3.3-V/Adjustable Output
Fast-Transient Response
2% Tolerance Over Load and Temperature
Dropout Voltage Typically 350 mV at 1 A
Ultra Low 85 µA Typical Quiescent Current
1 µA Quiescent Current During Shutdown
Dual Open Drain Power-On Reset With 200-ms Delay for Each Regulator
28-Pin PowerPAD TSSOP Package
Thermal Shutdown Protection for Each Regulator

Show

TPS767D325PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	HTSSOP-28
Current Rating	1.00 A
Power Rating	5.07 W
Number of Outputs	2 Output
Input Voltage (DC)	10.0V (max)
Output Voltage	2.50 V, 2.50 V (min)
Output Current	1 A
Supply Current	125 µA
Number of Positions	28 Position
Power Dissipation	5.07 W
Quiescent Current	0.085 mA
Output Capacitor Type	Ceramic
voltage rating	350 mV
Number of Regulated Outputs	2 Output
Input Voltage (Max)	10 V
Input Voltage (Min)	2.7 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	5070 mW
Accuracy	2 %
Input Voltage	2.7V ~ 10V
	Show
Size-Length	9.7 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
