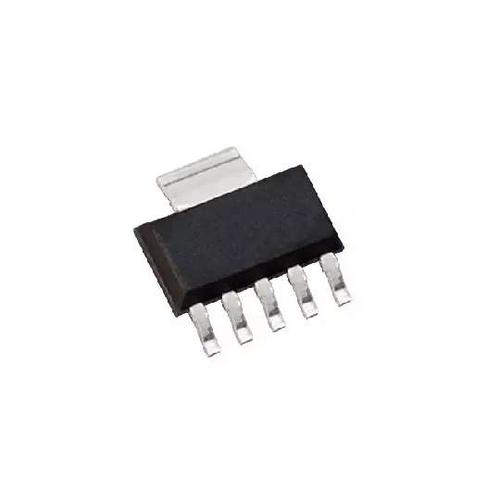

Image is for your reference only,please check specifications for details
- TPS79618DCQ - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC83054596
-
Category:Voltage Regulator
-
Package:SOT-223-6
-
Datasheet:Datasheet 3D Model
-
Description:Fixed LDO Voltage Regulator, 2.7V to 5.5V, 200mV Dropout, 1.8Vout, 1Aout, SOT-223-6
-
Stock Locations:
-
Availability:132 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.86
Updated at 04/12/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS796 family of low-dropout (LDO) low-power linear voltage regulators features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses in small outline, 3 × 3 VSON, SOT223-6, and TO-263 packages. Each device in the family is stable with a small, 1-µF ceramic capacitor on the output. The family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages (for example, 250 mV at 1 A). Each device achieves fast start-up times (approximately 50 µs with a 0.001-µF bypass capacitor) while consuming very low quiescent current (265 µA typical). Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1 µA. The TPS79630 exhibits approximately 40 µVRMS of output voltage noise at 3.0-V output, with a 0.1-µF bypass capacitor. Applications with analog components that are noise sensitive, such as portable RF electronics, benefit from the high PSRR, low noise features, and need fast response time.
TPS79618DCQ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-223-6 |
| Number of Outputs | 1 Output |
| Output Voltage | 1.8 V |
| Output Current | 1 A |
| Supply Current | 385 µA |
| Quiescent Current | 260 µA |
| Output Capacitor Type | Ceramic |
| voltage rating | 0.2V @1A |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.7 V |
| Output Voltage (Min) | 1.8 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±2 % |
| Input Voltage | 2.7V ~ 5.5V |
| Show | |
| Size-Length | 6.5 mm |
| Size-Width | 3.5 mm |
| Size-Height | 1.6 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
