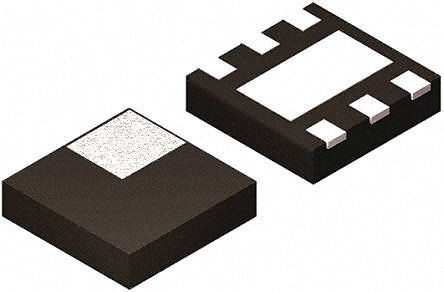

Image is for your reference only,please check specifications for details

TPS79933DRVR - TI
Manufacturer:
TI
ManyChip's Part#:
MC20505510
Category:
Voltage Regulator
Package:
WSON-6
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 200mA, Fixed(3.3V), Low Quiescent Current, Low Noise, High PSRR LDO Regulator Pos 3.3V 0.2A 6Pin WSON EP T/R
Stock Locations:
Availability:
2,145 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.59

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS79933DRVR is a 3.3V fixed output low-dropout (LDO) low-power Linear Regulator offers excellent AC performance with very low ground current. High power-supply rejection ratio (PSRR), low noise, fast start-up and excellent line and load transient response are provided while consuming a very low 40µA ground current. The device is stable with ceramic capacitors and uses an advanced BiCMOS fabrication process to yield a dropout voltage of typically 100mV at a 200mA output. The device uses a precision voltage reference and feedback loop to achieve an overall accuracy of 2% over all load, line, process and temperature variations. The device features inrush current protection when the EN toggle is used to start the device, immediately clamping the current.
66dB at 1kHz high PSRR
Stable with a low-ESR, 2µF output capacitance
Excellent load and line transient response
Green product and no Sb/Br

Show

TPS79933DRVR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WSON-6
Number of Outputs	1 Output
Input Voltage (DC)	6.50V (max)
Output Voltage	3.3 V
Output Current	200 mA
Supply Current	60 µA
Number of Positions	6 Position
Power Dissipation	1540 W
Quiescent Current	40 µA
Output Capacitor Type	Ceramic
voltage rating	90 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	6.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Min)	3.3 V
Output Current (Max)	200 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	2 %
Input Voltage	≤6.5 V
	Show
Size-Length	2.1 mm
Size-Width	2.1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
