Description
- The TPS7A37 family of linear low-dropout (LDO) voltage regulators uses an NMOS pass element in a voltage-follower configuration. This topology is relatively insensitive to output capacitor value and ESR, allowing a wide variety of load configurations. Load transient response is excellent, even with a small 1-µF ceramic output capacitor. The NMOS topology also allows very low dropout.
- The TPS7A37 family uses an advanced BiCMOS process to yield high precision while delivering very low dropout voltages and low ground pin current. Current consumption, when not enabled, is under 20 nA and ideal for portable applications. These devices are protected by thermal shutdown and foldback current limit.

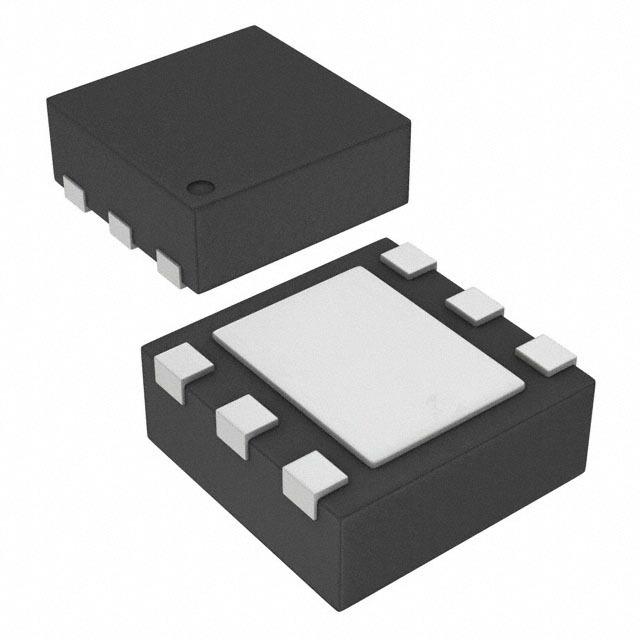

TPS7A3701DRVR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | WDFN-6 |
| Number of Outputs | 1 Output |
| Output Voltage | 1.2V ~ 5.5V |
| Output Current | 1 A |
| Supply Current | 400µA ~ 1.3mA |
| Quiescent Current | 400 µA |
| Output Capacitor Type | Ceramic |
| voltage rating | 0.13V @1A |
| Number of Regulated Outputs | 1 Output |
| Thermal Shutdown | Yes |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.2 V |
| Output Voltage (Max) | 5.37 V |
| Output Voltage (Min) | 1.2 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±0.23 % |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
