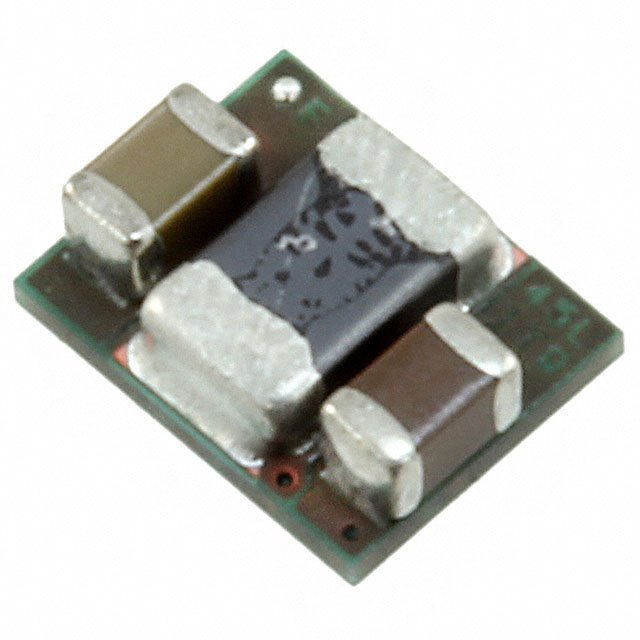

TPS82740BSIPT - TI
Manufacturer:
TI
ManyChip's Part#:
MC11542638
Category:
DC to DC Converter
Package:
BGA-9
Datasheet:
Datasheet 3D Model
Description:
Non Isolated Board Mount DC-DC Converter, Micro SIP, 2.6V, 3.3V, 200mA, 2.2V
Stock Locations:
Availability:
1,855 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.47

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS82740BSIPT is a non-isolated 200mA IQ MicroSIP™ Step-down Converter Module for low power applications. The TPS82740 is the industry"s first step down converter module featuring typically 360nA quiescent current consumption. It is a complete MicroSIP™ DC/DC step-down power solution intended for ultra low-power applications. The module includes the switching regulator, inductor and input/output capacitors. The integration of all required passive components enables a tiny solution size of only 6.7mm². This new DCS-Control™ based device extends the light load efficiency range below 10µA load currents. It supports output currents up to 200mA. The device operates from rechargeable Li-ion batteries, Li-primary battery chemistries such as Li-SOCl2, Li-MnO2 and two or three cell alkaline batteries. The input voltage range up to 5.5V also allows operation from an USB port and thin-film solar modules.
Integrated slew rate controlled load switch
RF friendly DCS-control
Low output voltage ripple
Discharge function on VOUT and LOAD
Sub 1.1mm profile solution
Up to 90% efficiency at 10µA
Pin selectable output voltages in 100mV steps
Automatic transition to no ripple 100% mode

Show

TPS82740BSIPT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	9 Pin
Case/Package	BGA-9
Number of Outputs	1 Output
Output Voltage	2.6V ~ 3.3V
Output Current	0.2 A
Quiescent Current	360 nA
Number of Regulated Outputs	1 Output
Switching Frequency	2000 kHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.2 V
Input Voltage (DC Max)	5.5 V
Input Voltage (DC Min)	2.2 v
Output Voltage (Max)	3.3 V
Output Voltage (Min)	2.6 V
Output Current (Max)	200 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.2V ~ 5.5V
	Show
Size-Width	2.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
