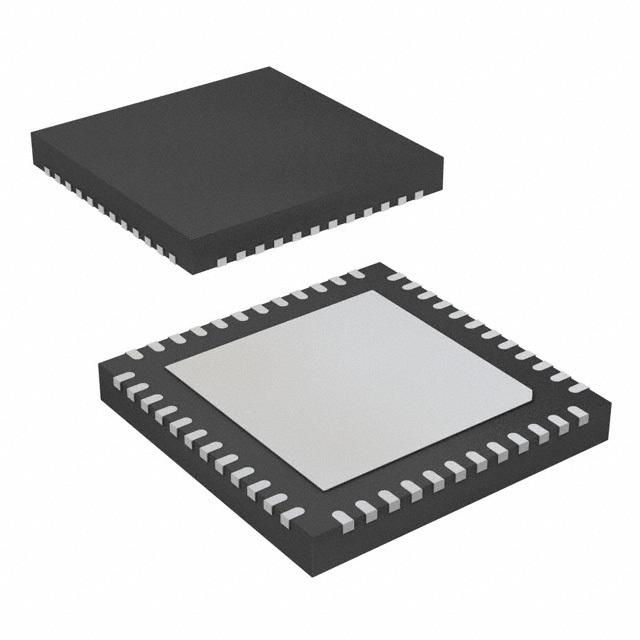

TRF372017IRGZT - TI
Manufacturer:
TI
ManyChip's Part#:
MC16452240
Category:
RF Module
Package:
VQFN-48
Datasheet:
Datasheet 3D Model
Description:
300MHz to 4.8GHz Quadrature Modulator with integrated wideband PLL/VCO 48-VQFN -40℃ to 85℃
Stock Locations:
Availability:
282 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 26

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TRF372017IRGZT is a 300MHz to 4.8GHz Quadrature Modulator with integrated wideband PLL/VCO. TRF372017 is a high-performance, direct up-conversion device, integrating a high-linearity, low-noise IQ modulator and an integer-fractional PLL/VCO. The VCO uses integrated frequency dividers to achieve a wide, continuous tuning range of 300 to 4800MHz. The LO is available as an output with independent frequency dividers. The device also accepts input from an external LO or VCO. The modulator baseband inputs can be biased either internally or externally. Internal DC offset adjustment enables carrier cancellation. The device is controlled through a 3-wire serial programming interface (SPI). A control pin invokes power-save mode to reduce power consumption while keeping the VCO locked for fast start-up.
76dBc single-carrier WCDMA ACPR at -8dBm channel power
OIP3 of 26dBm
P1dB of 11.5dBm
Integer/fractional PLL
Phase noise -132dBc/Hz (at 1MHz, fVCO of 2.3GHz)
-160dBm/Hz Low noise floor
Up to 160MHz Input reference frequency range
VCO frequency divided by 1-2-4-8 output

Show

TRF372017IRGZT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	VQFN-48
Frequency	300 MHz
Supply Voltage (DC)	4.50V (min)
Supply Current	200 mA
Number of Positions	48 Position
Output Power	3 dBm
Test Frequency	2.7 GHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Height	0.95 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
