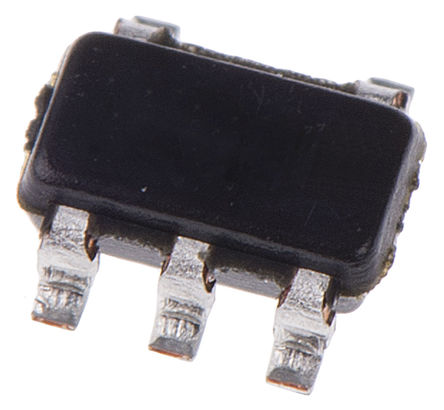

Image is for your reference only,please check specifications for details
- TS1851ILT - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC17289800
-
Category:Operational Amplifier, OP Amp IC
-
Package:SOT-23-5
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifier, Single, 1 Amplifier, 480kHz, 0.25V/µs, 1.8V to 6V, SOT-23, 5Pins
-
Stock Locations:
-
Availability:236 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.84
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TS1851ILT is a low power single Operational Amplifier with rail-to-rail input/output. It can operate with voltages as low as 1.8V. It features 120µA consumption current and 480kHz gain bandwidth product. With a such low consumption and a sufficient GBP for many applications, this op-amp is very well-suited for any kind of battery-supplied applications.
- Latch-up immunity
- Low supply current (120µA)
- Extended Vicm (VCC -0.2 to VCC +0.2V)
- High unity gain stability (able to drive 500pF)
- ESD tolerance (2kV)
- Good accuracy (1mV maximum for A version)
TS1851ILT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-23-5 |
| Supply Voltage (DC) | 1.80 V |
| Output Current | 48mA @5V |
| Supply Current | 162 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 5 Position |
| Common Mode Rejection Ratio | 55 dB |
| Bandwidth | 480 kHz |
| Slew Rate | 250 mV/μs |
| Gain Bandwidth Product | 630 kHz |
| Input Offset Voltage | 1 mV |
| Input Bias Current | 16 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 0.656 MHz |
| Minimum CMRR Range | 65 dB |
| Supply Voltage | 1.8V ~ 6V |
| Supply Voltage (Max) | 6 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 1.75 mm |
| Size-Height | 1.3 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
