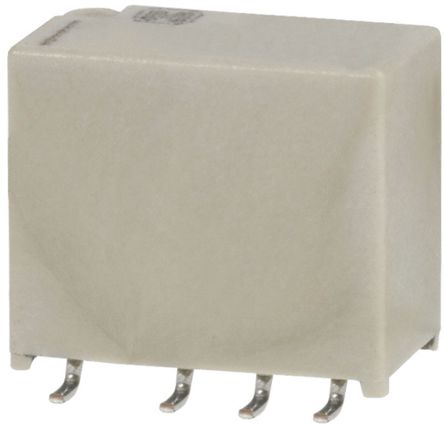

AGN200A4H - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC25133417
Category:
Industrial Relay
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Electromechanical Relay 4.5VDC 145Ω 1A DPDT(10.6mm 7.4mm 10mm) SMD General Purpose Relay
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AGN200A4H is a Monostable ECO-green Relay with DC coil. This AGN-series relay has 2-form-C AgPd contacts. Surface-mount type-A terminal, high sensitivity with 100mW nominal operating power, in a compact and space saving case. Coil assembly moulding technology.
Single side stable function
Micro-balanced armature mechanism
Twin crossbar contacts
Sealed construction allows automatic washing
Outstanding vibration and shock resistance
Use of twin crossbar contacts ensures high contact reliability

Show

AGN200A4H Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DIP
Voltage Rating (DC)	110 V
Voltage Rating (AC)	125 V
Current Rating	1 A
Insulation Resistance	1000 MΩ
Power Rating	30 W
Contacts Type	DPDT
Power Consumption	140 mW
Contact Current Rating	1 A
Coil Voltage	4.5 VDC
Coil Current	31 mA
Coil Power (DC)	140 mW
Coil Resistance	145 Ω
Carry Current	1.00 A
Current Rating (Max)	1 A
Coil Voltage (DC)	4.5 V
Coil Power	140 mW
Input Power (Max)	30W, 37.5VA
Switching Current (Max)	1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	125 VAC
Voltage Rating (DC Max)	110 V
Voltage Rating (AC Max)	125 V
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	10.6 mm
Size-Width	10 mm
Size-Height	10 mm
Contact Material	Silver Palladium
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2017/07/07
HTS Code	8536490050
ECCN Code	EAR99
