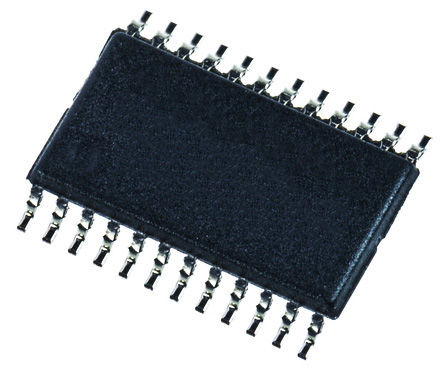

Image is for your reference only,please check specifications for details
- TS3A27518EPWR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1962988
-
Category:Analog Switch Ic, Analog Switch Multiplexer
-
Package:TSSOP-24
-
Datasheet:Datasheet 3D Model
-
Description:1:2 Analog Multiplexer IC, 6Circuits, 6.2Ω, 1.65V to 3.6V, TSSOP-24
-
Stock Locations:
-
Availability:274 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.73
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TS3A27518EPWR is a 1:2 Multiplexer/Demultiplexer that can handle both digital and analog signals and can transmit signals up to VCC in either direction. The device has two control pins, each controlling three 1:2 muxes at the same time and an enable pin that put all outputs in high impedance mode. The control pins are compatible with 1.8V logic thresholds and are backward compatible with 2.5V and 3.3V logic thresholds. The device allows any SD, SDIO and multimedia card host controllers to expand out to multiple cards or peripherals because the SDIO interface consists of 6-bit, CMD, CLK and data [0:3] signals. The device has two control pins that give additional flexibility to the user. For example, the ability to mux two different audio-video signals in equipment such as an LCD television, an LCD monitor or a notebook docking station.
- Isolation in power-down mode, VCC = 0
- Low-capacitance switches, 21.5pF (typical)
- Bandwidth up to 240MHz for high-speed rail-to-rail signal handling
- Crosstalk and OFF isolation of -62dB
- 1.8V Logic threshold compatibility for control inputs
- 3.6V Tolerant control inputs
- Latch-up performance exceeds 100mA Per JESD 78, Class II
- ESD performance tested per JESD 22
TS3A27518EPWR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | TSSOP-24 |
| Supply Voltage (DC) | 1.65V ~ 3.60V |
| Number of Outputs | 12 Output |
| Supply Current | 40 nA |
| Number of Circuits | 6 Circuit |
| Number of Channels | 6 Channel |
| Number of Positions | 24 Position |
| Voltage Nodes | 1.80 V, 2.50 V, 3.00 V, 3.30 V |
| Bandwidth | 240 MHz |
| Number of Inputs | 6 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 240 MHz |
| Supply Voltage | 1.65V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.65 V |
| Show | |
| Size-Length | 7.9 mm |
| Size-Width | 4.5 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
