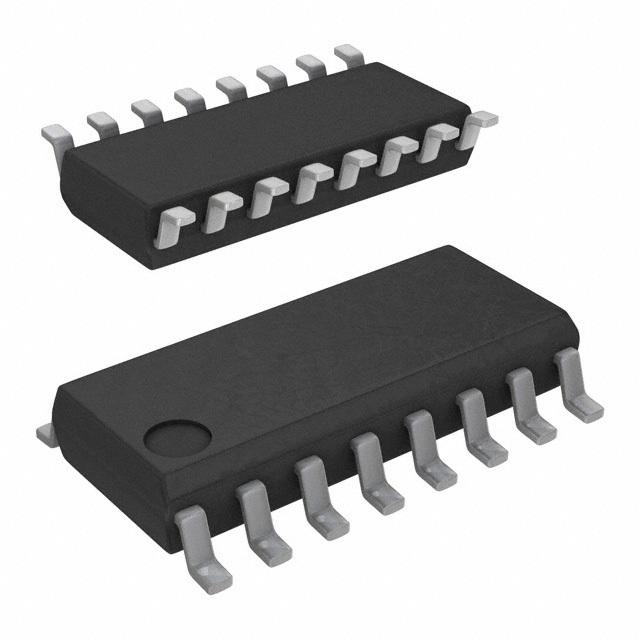

TS3A5017DR - TI
Manufacturer:
TI
ManyChip's Part#:
MC1574980
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
14Ω Dual SP4T Analog Switch 3.3V/2.5V Analog Multiplexer/Demultiplexer 16-SOIC -40℃ to 85℃
Stock Locations:
Availability:
256 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.26

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS3A5017 device is a dual single-pole quadruple-throw (4:1) analog switch that is designed to operate from 2.3 V to 3.6 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction.

Show

TS3A5017DR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Number of Outputs	8 Output
Contacts Type	4PST
Supply Current	2.5 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	16 Position
Number of Bits	2 Bit
Propagation Delay Max (tpd)	9.50 ns
Voltage Nodes	2.50 V, 3.00 V, 3.30 V
Bandwidth	165 MHz
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	165 MHz
Supply Voltage	2.3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.3 V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
