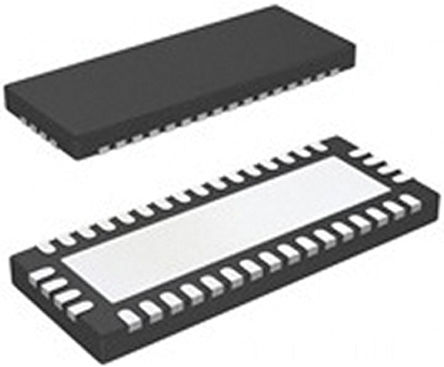

- TS3DV621RUAR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC5900278
-
Category:Analog Switch Ic, Analog Switch Multiplexer
-
Package:WQFN-42
-
Datasheet:Datasheet 3D Model
-
Description:12CH 1:2 Mux/DeMux for DVI/HDMI & Display Port Applications w/4CH Sideband Switch 42-WQFN -40℃ to 85℃
-
Stock Locations:
-
Availability:225 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.19
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TS3DV621 is a 1:2 or 2:1 bi-directional multiplexer/demultiplexer with a integrated 4 side-band control channel (DDC, AUX, CEC, or HPD) signal switcher. Operating from a 3 to 3.6V supply, the TS3DV621 offers low and flat ON-state resistance as well as low I/O capacitance, which allows the TS3DV621 to achieve a typical bandwidth of 2.2 GHz. The device provides the high bandwidth necessary for HDMI, DVI, and DisplayPort applications. The TS3DV621 expands the high-speed physical link interface from a single HDMI port to two HDMI ports (A or B port) or vise-versa. It can also be used for DisplayPort (DP) source/sink applications. The integrated side-band control channels allow 5V signals to pass through, making the TS3DV621 suitable for HDMI applications.
- The most common application for the TS3DV621 is the sink application. In this case, there are two possible sources (DVD, set-top box, or game console) that are routed to one receiver. The unselected port is in the high-impedance mode, such that the receiver receives information from only one source. HDCP encryption is passed through the switch for the receiver to decode.
TS3DV621RUAR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 42 Pin |
| Case/Package | WQFN-42 |
| Number of Outputs | 24 Output |
| Supply Current | 300 µA |
| Number of Channels | 12 Channel |
| Number of Bits | 12 Bit |
| Propagation Delay Max (tpd) | 40.0 ps |
| Bandwidth | 2.2 MHz |
| Number of Inputs | 12 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 9.1 mm |
| Size-Width | 3.6 mm |
| Size-Height | 0.75 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
