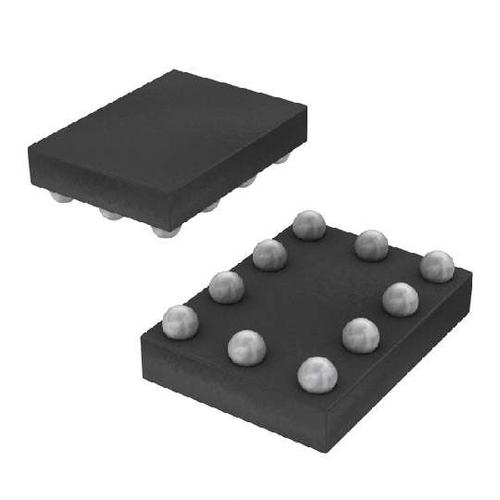

Image is for your reference only,please check specifications for details
- TS5A22362YZPR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC8240315
-
Category:Interface IC, Interface Controller
-
Package:DSBGA-10
-
Datasheet:Datasheet 3D Model
-
Description:0.65Ω 2Channel SPDT Switch With Negative Signaling Capability 10-DSBGA -40℃ to 85℃
-
Stock Locations:
-
Availability:251 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.57
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TS5A22362 is a bidirectional, 2-channel single-pole double-throw (SPDT) analog switch designed to operate from 2.3 V to 5.5 V. The device features negative signal swing capability that allows signals below ground to pass through the switch without distortion. The break-before-make feature prevents signal distortion during the transferring of a signal from one path to another. Low ON-state resistance, excellent channel-to-channel ON-state resistance matching, and minimal total harmonic distortion (THD) performance are ideal for audio applications. The 3.00 mm × 3.00 mm DRC package is also available as a nonmagnetic package for medical imaging application.
TS5A22362YZPR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | DSBGA-10 |
| Number of Outputs | 4 Output |
| Supply Current | 200 nA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Bandwidth | 17.0 MHz |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 18.3 MHz |
| Show | |
| Size-Length | 1.9 mm |
| Size-Width | 1.4 mm |
| Size-Height | 0.3 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
