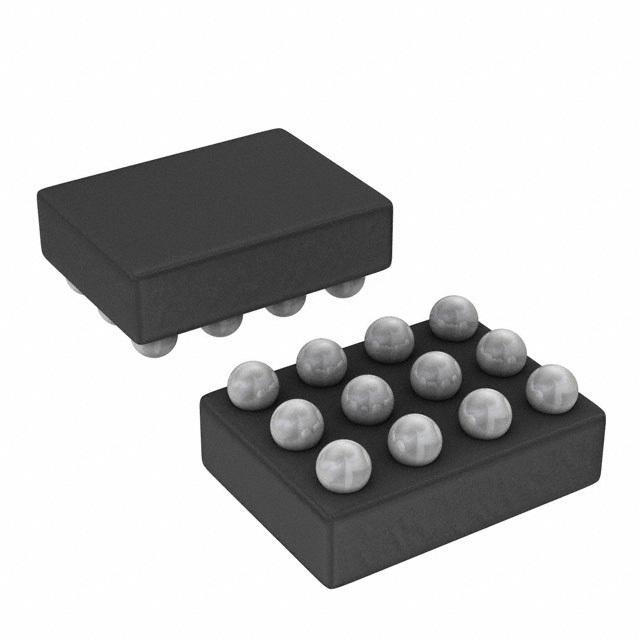

Image is for your reference only,please check specifications for details

TS5A22366YFCR - TI
Manufacturer:
TI
ManyChip's Part#:
MC4082936
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
DSBGA-12
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TS5A22366YFCR Analog Switch, Dual Channel, SPDT, 2Channels, 0.8Ω, 2.25V to 5.5V, DSBGA, 12Pins
Stock Locations:
Availability:
10,706 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.6

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS5A22366 is a dual single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device features negative signal capability that allows signals below ground to pass through the switch without distortion.
The break-before-make feature prevents signal distortion during the transferring of a signal from one path to another. Low ON-state resistance, excellent channel-to-channel ON-state resistance matching, and minimal total harmonic distortion (THD) performance are ideal for audio applications.
The TS5A22366 is available is a ultra small 1.6 mm × 1.2 mm wafer-chip-scale package (WCSP) (0.4 mm pitch).

Show

TS5A22366YFCR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	DSBGA-12
Supply Voltage (DC)	2.25V ~ 5.50V
Number of Outputs	2 Output
Supply Current	6 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	12 Position
Voltage Nodes	2.50 V, 3.00 V, 3.30 V, 5.00 V
Bandwidth	32 MHz
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	32 MHz
Supply Voltage	2.25V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.25 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
