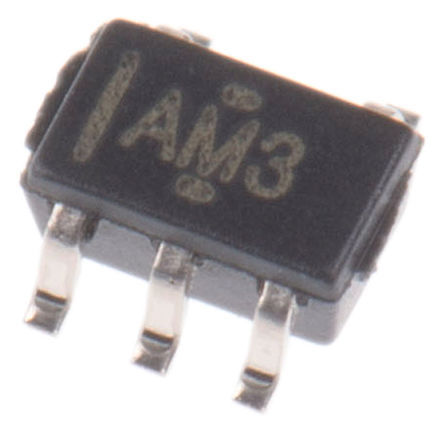

Image is for your reference only,please check specifications for details

TS5A3166QDCKRQ1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC3975159
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TS5A3166QDCKRQ1 Analog Switch, SPST, 1Channels, 3.9Ω, 4.5V to 5.5V, SC-70, 5Pins
Stock Locations:
Availability:
279 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.42

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS5A3166QDCKRQ1 is a single-pole single-throw (SPST) Analog Switch designed to operate from 1.65 to 5.5V. The device offers a low ON-state resistance. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
Low charge injection
Low Total Harmonic Distortion (THD)
Low power
0.9R Low on-state resistance
Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TS5A3166QDCKRQ1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Number of Outputs	1 Output
Supply Current	10 nA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Bandwidth	200 MHz
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	200 MHz
Supply Voltage	4.5V ~ 5.5V
	Show
Size-Length	2.15 mm
Size-Width	1.4 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
