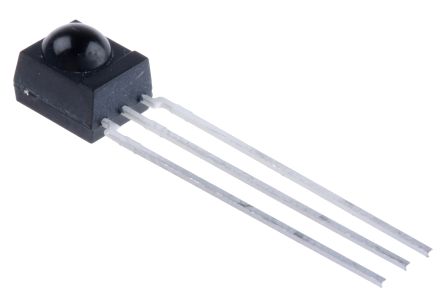

Image is for your reference only,please check specifications for details
- TSOP34836 - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC3731704
-
Category:Light Source, Emitter
-
Package:Side Looker
-
Datasheet:Datasheet 3D Model
-
Description:Vishay TSOP34836, 36kHz IR Receiver, 950nm, 45m Range, Through Hole, 6 x 5.6 x 6.95mm
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- TSOP348 Series 2.5 to 5.5 V 36 KHz 350 uA 45 m Side View IR Receiver
TSOP34836 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | Side Looker |
| Frequency | 36 kHz |
| Supply Voltage (DC) | 2.50V (min) |
| Output Current | 5 mA |
| Supply Current | 0.45 mA |
| Number of Positions | 3 Position |
| Wavelength | 950 nm |
| Viewing Angle | 45° |
| Power Dissipation | 10 mW |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Supply Voltage | 2.5V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 6 mm |
| Size-Width | 5.6 mm |
| Size-Height | 6.95 mm |
| Lead Length | 23.6 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
