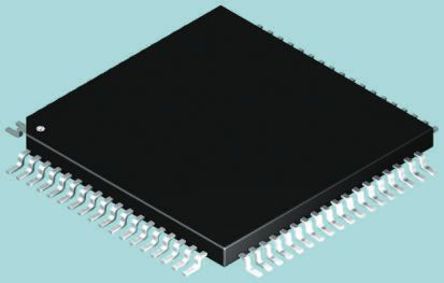

Image is for your reference only,please check specifications for details

TVP5146M2 - TI
Manufacturer:
TI
ManyChip's Part#:
MC179779366
Package:
PQFP
Datasheet:
Datasheet 3D Model
Description:
10Bit High Quality Single-Chip Digital Video Decoder That Digitizes And Decodes NTSC/PAL/SECAM 80-HTQFP -40℃ to 85℃
Stock Locations:
Availability:
315 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TVP5146M2 device is a high-quality single-chip digital video decoder that digitizes and decodes all popular baseband analog video formats into digital component video. The TVP5146M2 decoder supports the analog-to-digital (A/D) conversion of component RGB and YPbPr signals, as well as the A/D conversion and decoding of NTSC, PAL, and SECAM composite and S-Video into component YCbCr. This decoder includes four 11-bit 30-MSPS A/D converters (ADCs). Preceding each ADC in the device, the corresponding analog channel contains an analog circuit that clamps the input to a reference voltage and applies a programmable gain and offset. A total of ten video input terminals can be configured to a combination of RGB, YPbPr, CVBS, or S-Video video inputs.
Component, composite, or S-Video signals are sampled at 2x the ITU-R BT.601 clock frequency, line locked, and are then decimated to the 1x pixel rate. CVBS decoding utilizes 5-line adaptive comb filtering for both the luma and chroma data paths to reduce both cross-luma and cross-chroma artifacts. A chroma trap filter is also available. On CVBS and S-Video inputs, the user can control video characteristics, such as contrast, brightness, saturation, and hue via an I2C host port interface. Furthermore, luma peaking (sharpness) with programmable gain is included, as well as a patented chroma transient improvement (CTI) circuit.
A built-in color space converter is applied to decoded component RGB data.
Two output formats can be selected: 20-bit 4:2:2 YCbCr or 10-bit 4:2:2 YCbCr.
The TVP5146M2 decoder generates synchronization, blanking, field, active video window, horizontal and vertical syncs, clock, genlock (for downstream video encoder synchronization), host CPU interrupt, and programmable logic I/O signals, in addition to digital video outputs.
The TVP5146M2 decoder includes methods for advanced vertical blanking interval (VBI) data retrieval. The VBI data processor (VDP) slices, parses, and performs error checking on teletext, closed caption (CC), and other VBI data. A built-in FIFO stores up to 11 lines of teletext data and, with proper host port synchronization, full-screen teletext retrieval is possible. The TVP5146M2 decoder can pass through the output formatter 2x the sampled raw luma data for host-based VBI processing.
The main blocks of the TVP5146M2 decoder include:
Robust sync detection for weak and noisy signals as well as VCR trick modes
Y/C separation by 2-D 5-line adaptive comb or chroma trap filter
Fast-switch input for pixel-by-pixel switching between CVBS and YPbPr/RGB component video inputs (SCART support)
Four 11-bit 30-MSPS ADCs with analog preprocessors [clamp and automatic gain control (AGC)]
Luminance processor
Chrominance processor
Component processor
Clock/timing processor and power-down control
Software-controlled power-saving standby mode
Output formatter
I2C host port interface
VBI data processor
Macrovision™ copy protection detection circuit (Type 1, 2, 3, and separate color stripe detection)
3.3-V tolerant digital I/O ports
Four 30-MSPS 11-Bit A/D Channels With Programmable Gain Control
Supports NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), SECAM (B, D, G, K, K1, L), CVBS, and S-Video
Supports Analog SD YPbPr Component and SCART (RGB/YPbPr + CVBS) Video Formats With Embedded Sync
Ten Analog Video Input Terminals for Multisource Connection
User-Programmable Video Output Formats
10-Bit ITU-R BT.656 4:2:2 YCbCr With Embedded Syncs
10-Bit 4:2:2 YCbCr With Separate Syncs
20-Bit 4:2:2 YCbCr With Separate Syncs
2x Sampled Raw VBI Data in Active Video During Vertical Blanking Period
Sliced VBI Data During Vertical Blanking Period or Active Video Period (Full-Field Mode)
HSYNC/VSYNC Outputs With Programmable Position, Polarity, Width, and Field ID (FID) Output
Component Video Processing
Gain (Contrast) and Offset (Brightness) Adjustments
Automatic Component Video Detection (525/625)
Color Space Conversion from RGB to YCbCr
Composite and S-Video Processing
Adaptive 2-D 5-Line Adaptive Comb Filter for Composite Video Inputs; Chroma-Trap Available
Automatic Video Standard Detection (NTSC/PAL/SECAM) and Switching
Luma Peaking With Programmable Gain
Patented Chroma Transient Improvement (CTI) Circuit
Patented Architecture for Locking to Weak, Noisy, or Unstable Signals
Single 14.31818-MHz Reference Crystal for All Standards
Line-Locked Internal Pixel Sampling Clock Generation With Horizontal and Vertical Lock Signal Outputs
Genlock Output RTC Format for Downstream Video Encoder Synchronization
Certified Macrovision Copy Protection Detection
Available in Commercial (0°C to 70°C) and Industrial (-40°C to 85°C) Temperature Ranges
VBI Data Processor
Teletext (NABTS, WST)
CC and Extended Data Service (EDS)
Wide Screen Signaling (WSS)
Copy Generation Management System (CGMS)
Video Program System (VPS/PDC)
Vertical Interval Time Code (VITC)
Gemstar 1x/2x Mode
V-Chip Decoding
Register Readback of CC, WSS (CGMS), VPS/PDC, VITC and Gemstar 1x/2x Sliced Data
I2C Host Port Interface
Reduced Power Consumption: 1.8-V Digital Core, 3.3-V Digital I/O, and 1.8-V Analog Core With Power-Save and Power-Down Modes
80-Terminal TQFP PowerPAD Package
RGB Sync on Green Not Currently Supported, All References to "RGB" in This Data Manual Imply "SCART RGB"

Show

TVP5146M2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	80 Pin
Case/Package	PQFP
Number of ADCs	4 ADC
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
	Show
Size-Length	12.2 mm
Size-Width	12.20 mm
Size-Height	1.05 mm
Product Lifecycle Status
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
