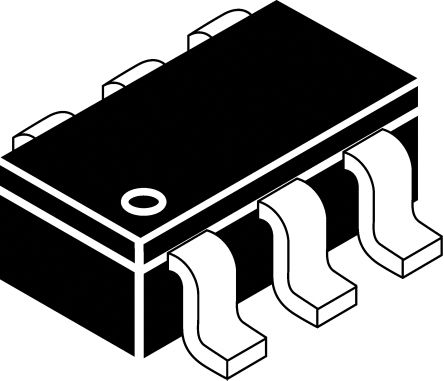

Image is for your reference only,please check specifications for details

TVS3V3L4U E6327 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC79553126
Category:
TVS Diode
Package:
SOT-26-6
Datasheet:
Datasheet 3D Model
Description:
INFINEON TVS3V3L4U E6327 TVS Diode, TVS3V Series, Bidirectional, 3.3V, 7.7V, SC-74, 6Pins
Stock Locations:
Availability:
17 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.41

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TVS3V3L4U E6327 is a low capacitance ESD/Transient/Surge Protection TVS Diode Array gives protection according to ±30kV air/contact discharge IEC61000-4-2 (ESD), ±80A (5/50ns) IEC61000-4-4 (EFT) and ±20A (8/20µs) IEC61000-4-5 (Surge).
<50nA Low leakage current (IR)
2pF (I/O to GND), 1pF (I/O to I/O) Low capacitance (CL)
4 Lines unidirectional (Pin 2 to GND)
-55 to 125°C Operating temperature range

Show

TVS3V3L4U E6327 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-26-6
Capacitance	3 pF
Number of Circuits	4 Circuit
Number of Positions	6 Position
Clamping Voltage	7.7 V
Peak Pulse Power	154 W
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	0.95 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
