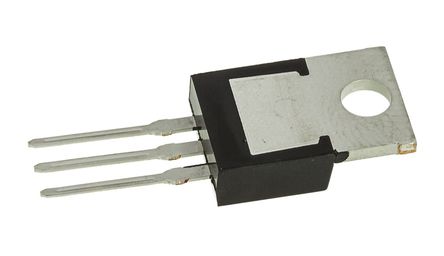

Image is for your reference only,please check specifications for details

UA78M33CKCS - TI
Manufacturer:
TI
ManyChip's Part#:
MC18039538
Category:
Voltage Regulator
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
Standard Voltage Regulator 3/4Pin 500mA Fixed 3.3V Positive Voltage Regulator Standard Regulator Pos 3.3V 0.5A 3Pin(3+Tab) TO-220 Tube
Stock Locations:
Availability:
842 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.99

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UA78M33CKCS is a fixed-voltage integrated-circuit voltage regulator designed for a wide range of applications. The internal current-limiting and thermal-shutdown features of this regulator essentially make it immune to overload. In addition to use as a fixed-voltage regulator, this device can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.
3-Terminal regulator
Output current up to 500 mA
No external components
Internal thermal-overload protection
High power-dissipation capability
Internal short-circuit current limiting
Output transistor safe-area compensation

Show

UA78M33CKCS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Outputs	1 Output
Input Voltage (DC)	25.0V (max)
Output Voltage	3.3 V
Output Current	500 mA
Number of Positions	3 Position
Quiescent Current	4.50 mA
Output Capacitor Type	Capacitor Free
voltage rating	2V @350mA
Number of Regulated Outputs	1 Output
Input Voltage (Max)	25 V
Input Voltage (Min)	5.3 V
Output Voltage (Max)	3.3 V
Output Current (Max)	500 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	5.3V ~ 25V
	Show
Size-Length	10.16 mm
Size-Width	4.58 mm
Size-Height	8.7 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
