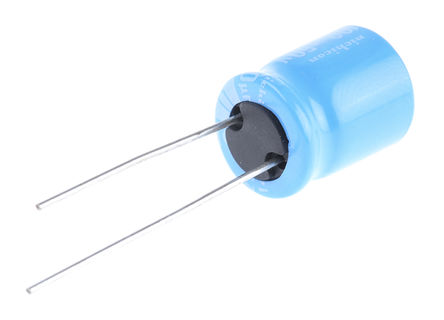

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **BT Series High Temperature (PET Sleeve)**
- Nichicon BT Series aluminum Electrolytic Capacitors are high reliability, low impedance and a miniature size that offer a 10,000 hour load life. The BT series features a high temperature range, a wide rated voltage range, and high ripple current.
UBT1H101MPD8 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | Radial, CAN |
| Pin Pitch | 5 mm |
| Voltage Rating (DC) | 50 V |
| Operating Voltage | 50 VDC |
| Capacitance | 100 µF |
| Equivalent Series Resistance (ESR) | 0.18 Ω |
| Capacitance Tolerance | ±20 % |
| Part Family | UBT |
| Ripple Current | 555 mArms |
| Ripple Current (Low Frequency) | 277.5mA @120Hz |
| Ripple Current (High Frequency) | 555mA @100kHz |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 50 V |
| Show | |
| Size-Height | 12.5 mm |
| Size-Diameter | Φ10mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Minimum Packing Quantity | 2000 |
| Life (Hours) | 5000 h |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
