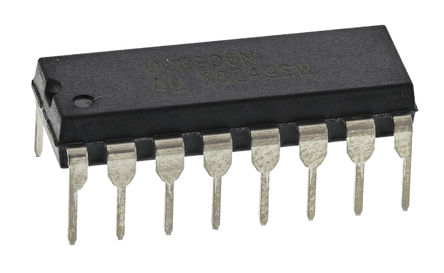

UC2906N - TI
Manufacturer:
TI
ManyChip's Part#:
MC23044240
Category:
Battery Management IC
Package:
PDIP-16
Datasheet:
Datasheet 3D Model
Description:
Battery Charge Management Linear Lead-Acid Battery Charger Charge Controller Lead-Acid 16Pin PDIP Tube
Stock Locations:
Availability:
81 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.2

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Integrating this charge UC2906N charge controller from Texas Instruments can significantly reduce the complexity and component count of a battery powered system. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This battery gauge has a minimum operating temperature of -40 °C and a maximum of 70 °C. This device runs on Lead-Acid. This device has a maximum of 40 V.

Show

UC2906N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Supply Voltage (DC)	40.0V (max)
Power Rating	1 W
Input Voltage (DC)	40.0 V
Output Voltage	40 V
Output Current	0.04 A
Number of Channels	1 Channel
Input Current	1.80 mA
Power Dissipation	1000 mW
Output Current (Max)	40 mA
Output Current (Min)	25 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	4.2.4.8 VDC
Input Voltage	40 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
