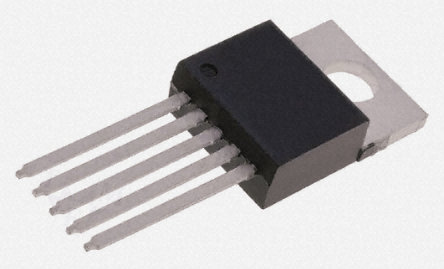

Image is for your reference only,please check specifications for details

UC3705T - TI
Manufacturer:
TI
ManyChip's Part#:
MC42055131
Category:
FET Driver
Package:
TO-220-5
Datasheet:
Datasheet 3D Model
Description:
MOSFET DRVR 1.5A 1Out High Speed Inv/Non-Inv 5Pin(5+Tab) TO-220 Tube
Stock Locations:
Availability:
9,662 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.21

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UC1705 family of power drivers is made with a high sppeed Schottky process to interface between low-level control functions and high-power switching devices - particularly power MOSFETs. These devices are also an optimum choise for capacitive line drivers where up to 1.5 A may be switched in either direction. With both inverting and non-inverting inputs available, logic signals of either polarity may be accepted, or one input can be used to gate or strobe the other.
Supply voltages for both VS and VC can independently range from 5 V to 40 V. For additional application details, see the UC1707/3707 data sheet (SLUS177).
The UC1705 is packaged in an 8-pin hermetically sealed CERDIP for -55°C to 125°C operation. The UC3705 is specified for a temperature range of 0°C to 70°C and is available in either a plastic minidip or a 5-pin, power TO-220 package.

Show

UC3705T Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	TO-220-5
Supply Voltage (DC)	40.0V (max)
Rise/Fall Time	60 ns
Number of Outputs	1 Output
Output Current	1.5 A
Power Dissipation	3000 mW
Rise Time	40 ns
Fall Time	40 ns
Fall Time (Max)	60 ns
Fall Time (Max)	90 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	3000 mW
Supply Voltage	5V ~ 40V
Supply Voltage (Max)	40 V
Supply Voltage (Min)	5 V
	Show
Size-Length	10.16 mm
Size-Width	4.58 mm
Size-Height	8.51 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
