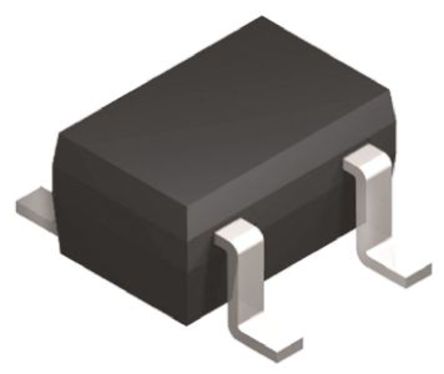

Image is for your reference only,please check specifications for details

NCP612SQ30T2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC32914230
Category:
Voltage Regulator
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
NCP612SQ30T2G, Single Linear Voltage Regulator, 100mA 3V, 2%, 5Pin SC-70
Stock Locations:
Availability:
278 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.12

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This LDO NCP612SQ30T2G linear regulator from ON Semiconductor gives you control over the voltage levels of your circuit. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.23@100mA V. This voltage regulation device"s single output can produce a current up to 0.2(Typ) A. Use this part at voltages between 0 V and 6 V. With a fixed output that has a voltage of 3 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.8mV/mA and line regulation of 3mV/V. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. The maximum dropout voltage is 0.38@100mA V.

Show

NCP612SQ30T2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Power Rating	330 mW
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	3 V
Output Current	100 mA
Supply Current	1µA ~ 90µA
Number of Positions	5 Position
Polarity	P-Channel
Quiescent Current	90 µA
voltage rating	230 mV
Input Voltage (Max)	6 V
Input Voltage (Min)	0 V
Output Voltage (Min)	3 V
Output Current (Max)	100 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	6V ~ 0V
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
