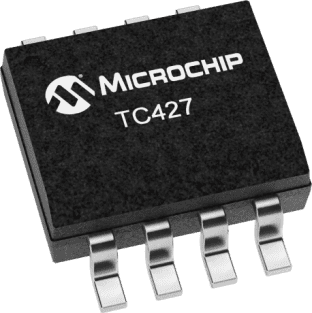

- TC427EOA - Microchip
-
Manufacturer:Microchip
-
ManyChip's Part#:MC5768200
-
Category:FET Driver
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:Microchip TC427EOA, Dual MOSFET Power Driver 1.5A, 4.5 → 18V, Non-Inverting, 8Pin SOIC
-
Stock Locations:
-
Availability:248 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.57
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- GENERAL DESCRIPTION
- The TC426/TC427/TC428 are dual CMOS high-speed drivers. A TTL/CMOS input voltage level is translated into a rail-to-rail output voltage level swing. The CMOS output is within 25 mV of ground or positive supply. The low impedance, high-current driver outputs swing a 1000pF load 18V in 30nsec. The unique current and voltage drive qualities make the TC426/TC427/TC428 ideal power MOSFET drivers, line drivers, and DC-to-DC converter building blocks.
- FEATURES
- ■High-Speed Switching (CL= 1000pF) ........... 30nsec
- ■High Peak Output Current ................................. 1.5A
- ■High Output Voltage Swing .................. VDD – 25mV
- GND + 25mV
- ■Low Input Current (Logic "0" or "1") ................ 1µA
- ■TTL/CMOS Input Compatible
- ■Available in Inverting and Noninverting Configurations
- ■Wide Operating Supply Voltage ............ 4.5V to 18V
- ■Current Consumption
- — Inputs Low .................................................. 0.4mA
- — Inputs High .................................................... 8mA
- ■Single Supply Operation
- ■Low Output Impedance ........................................ 6Ω
- ■Pinout Equivalent of DS0026 and MMH0026
- ■Latch-Up Resistant: Withstands > 500mA Reverse Current
- ■ESD Protected ......................................................2kV
TC427EOA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Voltage (DC) | 4.50V (min) |
| Operating Voltage | 4.5V ~ 18V |
| Rise/Fall Time | 30 ns |
| Number of Outputs | 2 Output |
| Output Current | 1.5 A |
| Supply Current | 8.00 mA |
| Number of Channels | 2 Channel |
| Power Dissipation | 470 mW |
| Fall Time (Max) | 30 ns |
| Fall Time (Max) | 30 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 470 mW |
| Supply Voltage | 4.5V ~ 18V |
| Show | |
| Size-Length | 4.9 mm |
| Size-Width | 3.91 mm |
| Size-Height | 1.42 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
