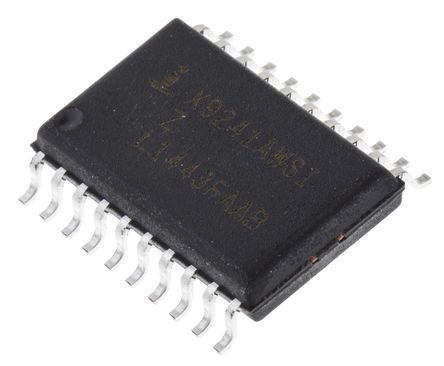

Image is for your reference only,please check specifications for details
- X9241AWSIZ - Intersil
-
Manufacturer:Intersil
-
ManyChip's Part#:MC43786589
-
Category:Digital Potentiometer IC
-
Package:SOIC-20
-
Datasheet:Datasheet 3D Model
-
Description:X9241AWSIZ, Digital Potentiometer 10K 64Position Linear 4Channel Serial-2 Wire 20Pin SOIC
-
Stock Locations:
-
Availability:268 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.65
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Quad Digitally Controlled Potentiometer (XDCP™)
- The X9241A integrates four digitally controlled potentiometers (XDCP) on a monolithic CMOS integrated microcircuit.
- The digitally controlled potentiometer is implemented using 63 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The position of the wiper on the array is controlled by the user through the 2-wire bus interface. Each potentiometer has associated with it a volatile Wiper Counter Register (WCR) and 4 nonvolatile Data Registers (DR0:DR3) that can be directly written to and read by the user. The contents of the WCR controls the position of the wiper on the resistor array through the switches. Power up recalls the contents of DR0 to the WCR.
- Features
- • Four potentiometers in one package
- • 2-wire serial interface
- • Register oriented format
- - Direct read/write/transfer of wiper positions
- - Store as many as four positions per potentiometer
- • Terminal Voltages: +5V, -3.0V
- • Cascade resistor arrays
- • Low power CMOS
- • High Reliability
- - Endurance–100,000 data changes per bit per register
- - Register data retention–100 years
- • 16-bytes of nonvolatile memory
- • 3 resistor array values
- - 2kΩ to 50kΩ mask programmable
- - Cascadable for values of 500Ω to 200kΩ
- • Resolution: 64 taps each pot
- • 20 Ld plastic DIP, 20 Ld TSSOP and 20 Ld SOIC packages
- • Pb-free plus anneal available (RoHS compliant)
X9241AWSIZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | SOIC-20 |
| Frequency | 100 KHz |
| Supply Voltage (DC) | 4.50V (min) |
| Voltage Rating (DC) | 5.50 V |
| Capacitance Tolerance | ±20 % |
| Supply Current | 3 mA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 64 Position |
| Clock Speed | 100kHz (max) |
| Resistance | 10 kΩ |
| Resistance Tolerance | ±20 % |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4.5V ~ 5.5V |
| Supply Voltage (Max) | 5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 12.8 mm |
| Size-Width | 7.49 mm |
| Size-Height | 2.34 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Temperature Coefficient | ±300 ppm/℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
