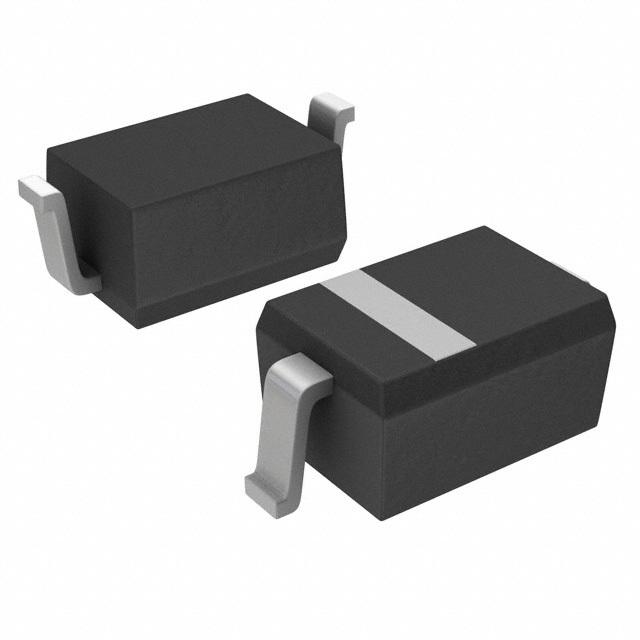

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

SMMDL914T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323-2
Halogen Free Status	Halogen Free
Number of Positions	2 Position
Forward Voltage	1 V
Power Dissipation	200 mW
Thermal Resistance	635℃/W (RθJA)
Reverse recovery time	4 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	36 A
Maximum Forward Voltage (Max)	1V @10mA
Forward Current (Max)	0.2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Height	0.9 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
