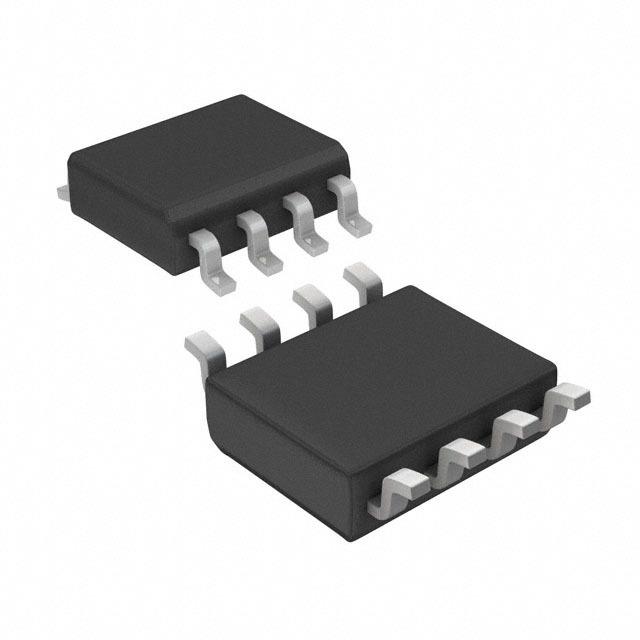

Image is for your reference only,please check specifications for details
- UC3843BD1013TR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC41544
-
Category:Voltage Regulator
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:UC3843B Series 30V 17mA High Performance Current Mode PWM Controller - SOIC-8
-
Stock Locations:
-
Availability:9,511 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.28
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Efficiently control the voltages across your project by using STMicroelectronics" UC3843BD1013TR current controller. Its single PWM output produces a current of 1000(Max) mA. This current mode controller supports boost|flyback topology. Its switching regulator has a frequency of 500 kHz. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This current mode controller"s maximum duty cycle is 100 %. This device has a maximum of 30 V. This current mode controller has an operating temperature range of 0 °C to 70 °C.
UC3843BD1013TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Frequency | 500 kHz |
| Supply Voltage (DC) | 15.0 V |
| Number of Outputs | 1 Output |
| Output Voltage | 4.90V ~ 5.10V |
| Output Current | 1 A |
| Supply Current | 17 mA |
| Number of Positions | 8 Position |
| Power Dissipation | 1.25 W |
| Quiescent Current | 12.0 mA |
| Rise Time | 50 ns |
| Switching Frequency | 500 kHz |
| Thermal Resistance | 150 ℃/W |
| Duty Cycle | 100 % |
| Maximum Duty Cycle | 100 % |
| Fall Time | 50 ns |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 1250 mW |
| Supply Voltage | 7.6V ~ 30V |
| Supply Voltage (Max) | 30 V |
| Supply Voltage (Min) | 11 V |
| Input Voltage | 2.55 V |
| Show | |
| Size-Height | 1.65 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
