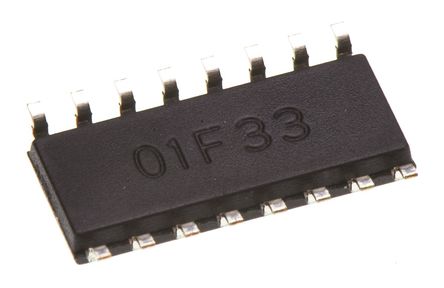

Image is for your reference only,please check specifications for details

UCC2818D - TI
Manufacturer:
TI
ManyChip's Part#:
MC8101821
Category:
Power Management IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS UCC2818D PFC Controller IC, 12V to 17V & 4mA Supply, 12V Lockout, 95% Duty Cycle, 250kHz, SOIC-16
Stock Locations:
Availability:
2 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.28

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UCC2818D is a BiCMOS Power Factor Preregulator designed to achieves near unity power factor by shaping the ac input line current waveform to correspond to that of the ac input line voltage. Average current-mode control maintains stable, low distortion sinusoidal line current. It offers new features such as lower start-up current, lower power dissipation, overvoltage protection, a shunt UVLO detect circuitry, a leading-edge modulation technique to reduce ripple current in the bulk capacitor and an improved, low-offset (±2mV) current amplifier to reduce distortion at light load conditions. Also offers an on-chip shunt regulator with low start-up current.
Controls boost preregulator to near-unity power factor
Limits line distortion
World-wide line operation
Over-voltage protection
Accurate power limiting
Average current mode control
Improved noise immunity
Improved feed-forward line regulation
Leading edge modulation
150µA Typical start-up current
Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

UCC2818D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Frequency	250 kHz
Supply Voltage (DC)	12.0V (min)
Number of Outputs	1 Output
Output Voltage	6.80 V
Output Current	≤1.20 A
Number of Positions	16 Position
Switching Frequency	6kHz ~ 220kHz
Duty Cycle	95 %
Maximum Duty Cycle	99 %
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	9.7V ~ 18V
Supply Voltage (Max)	17 V
Supply Voltage (Min)	12 V
	Show
Size-Length	9.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
