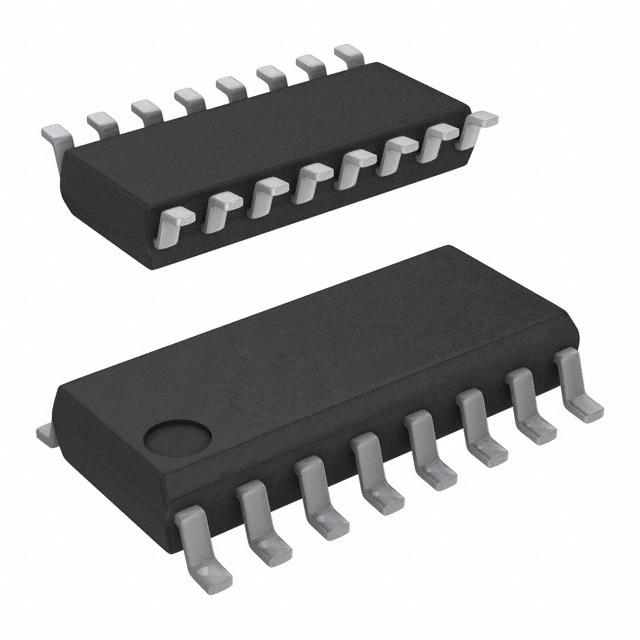

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION/ORDERING INFORMATION
- The ULN2003AI is a high-voltage, high-current Darlington transistor array. This device consists of seven npn Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500 mA. The Darlington pairs can be paralleled for higher current capability. Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers.
- FEATURES
- • 500-mA-Rated Collector Current (Single Output)
- • High-Voltage Outputs . . . 50 V
- • Output Clamp Diodes
- • Inputs Compatible With Various Types of Logic
- • Relay-Driver Applications
ULN2003AIDR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Voltage Rating (DC) | 50.0 V |
| Current Rating | 500 mA |
| Number of Positions | 16 Position |
| Polarity | NPN |
| Breakdown Voltage (Collector to Emitter) | 50 V |
| Drivers Per Package | 7 |
| Continuous Collector Current | 0.5A |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Width | 3.91 mm |
| Operating Temperature | -40℃ ~ 105℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/12/17 |
| ECCN Code | EAR99 |
