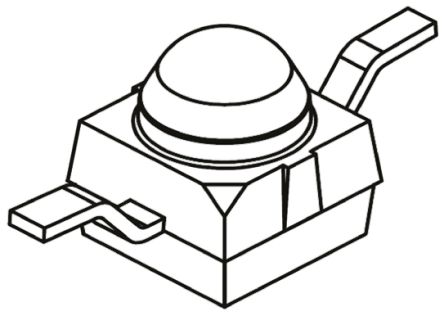

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The VEMT2000X01 is a Silicon NPN Epitaxial Planar Phototransistor with daylight blocking filter in a miniature, black dome lens package for surface mounting. Filter bandwidth is matched with 830 to 950nm IR emitters.
Surface mount
AEC-Q101 qualified
High radiant sensitivity
Daylight blocking filter matched with 830 to 950nm IR emitters
Fast response time
ϕ = ±15° Angle of half sensitivity
Package matched with IR emitter series VSMB2000X01
4 Weeks floor life, MSL 2a, according to J-STD-020
Lead (Pb)-free reflow soldering

Show

VEMT2000X01 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMD-2
Number of Channels	1 Channel
Number of Positions	2 Position
Wavelength	860 nm
Viewing Angle	30°
Peak Wavelength	860 nm
Power Dissipation	100 mW
Power Consumption	100 mW
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Length	2.3 mm
Size-Width	2.3 mm
Size-Height	2.77 mm
Material	Silicon
Operating Temperature	-40℃ ~ 100℃ (TA)
Product Lifecycle Status	Not Recommended for New Design
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
