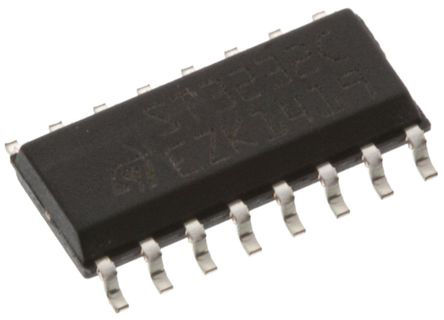

Image is for your reference only,please check specifications for details

VIPER38LD - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC33566433
Category:
AC to DC Converter, AC/DC Power Module
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS VIPER38LD AC-DC Off-Line Switcher IC, VIPerPlus Family, Flyback, 8.5VAC - 23.5VAC, 1.5W, NSOIC-16 New
Stock Locations:
Availability:
233 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.95

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

VIPER38LD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Power Rating	1.5 W
Output Voltage	800 V
Breakdown Voltage	800 V
Number of Positions	16 Position
Output Power	18 W
Switching Frequency	60 kHz
Duty Cycle	80 %
Input Voltage (Max)	23.5 V
Input Voltage (Min)	8.5 V
Input Voltage (AC Max)	23.5 v
Input Voltage (AC Min)	8.5 v
Maximum Duty Cycle	80 %
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	23.5 V
Supply Voltage (Min)	8.5 V
Input Voltage	8.5V ~ 23.5V
	Show
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
