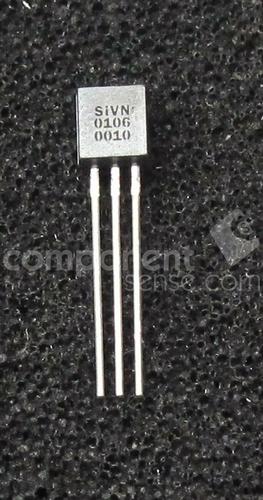

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 40V 3.0Ω 2.0A VN0104N3
- 60V 3.0Ω 2.0A VN0106N3
- Applications
- ❏ Motor controls
- ❏ Converters
- ❏ Amplifiers
- ❏ Switches
- ❏ Power supply circuits
- ❏ Drivers (relays, hammers, solenoids, lamps,memories, displays, bipolar transistors, etc.)
- Features
- ❏ Free from secondary breakdown
- ❏ Low power drive requirement
- ❏ Ease of paralleling
- ❏ Low CISSand fast switching speeds
- ❏ Excellent thermal stability
- ❏ Integral Source-Drain diode
- ❏ High input impedance and high gain
- ❏ Complementary N- and P-channel devices
VN0106N3 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-92 |
| Drain to Source Resistance (on) (Rds) | 3.00 Ω |
| Polarity | N-Channel |
| Power Dissipation | 1.00 W |
| Breakdown Voltage (Drain to Source) | 60.0 V |
| Breakdown Voltage (Gate to Source) | ±20.0 V |
| Continuous Drain Current (Ids) | 350 mA |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| ECCN Code | EAR99 |
