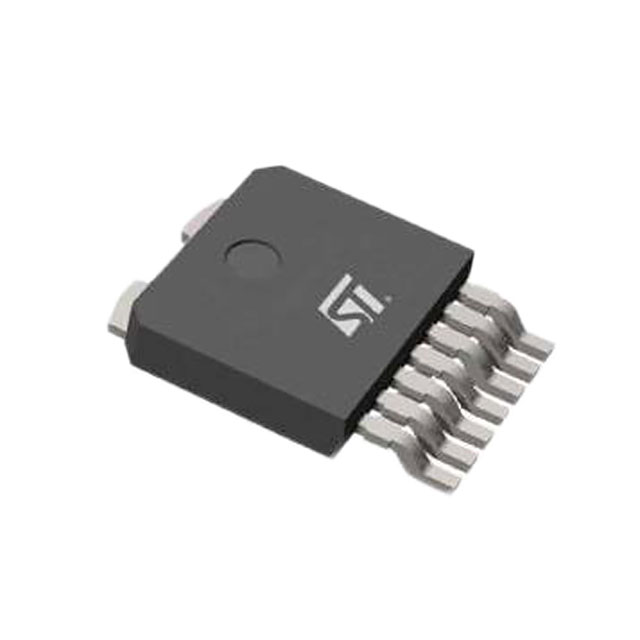

Image is for your reference only,please check specifications for details
- VN7004CHTR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC115205193
-
Category:Switching Power Supply, Power Switch
-
Package:HPAK + 1 (OCTAPAK)
-
Datasheet:Datasheet 3D Model
-
Description:Power Switch Hi Side 1Out 0.004Ω Automotive 8Pin(7+Tab) Octapak T/R
-
Stock Locations:
-
Availability:9,745 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.4
Updated at 18/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Power Switch/Driver 1:1 N-Channel 80A OctaPAK 7+1
VN7004CHTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 8 Pin |
| Case/Package | HPAK + 1 (OCTAPAK) |
| Number of Outputs | 1 Output |
| Number of Positions | 8 Position |
| Output Current (Max) | 175 A |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 13 V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
