Description
- DESCRIPTION
- The VNP5N07 is a monolithic device made using SGS-THOMSON Vertical Intelligent Power M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built in thermal shut-down, linear current limitation and overvoltage clamp protect the chip in harsh enviroments. Fault feedback can be detected by monitoring the voltage at the input pin.
- ■ LINEAR CURRENT LIMITATION
- ■ THERMAL SHUT DOWN
- ■ SHORT CIRCUIT PROTECTION
- ■ INTEGRATED CLAMP
- ■ LOW CURRENT DRAWN FROM INPUT PIN
- ■ DIAGNOSTIC FEEDBACK THROUGH INPUT PIN
- ■ ESD PROTECTION
- ■ DIRECT ACCESS TO THE GATE OF THE POWER MOSFET (ANALOG DRIVING)
- ■ COMPATIBLE WITH STANDARD POWER MOSFET
- ■ STANDARD TO-220 PACKAGE

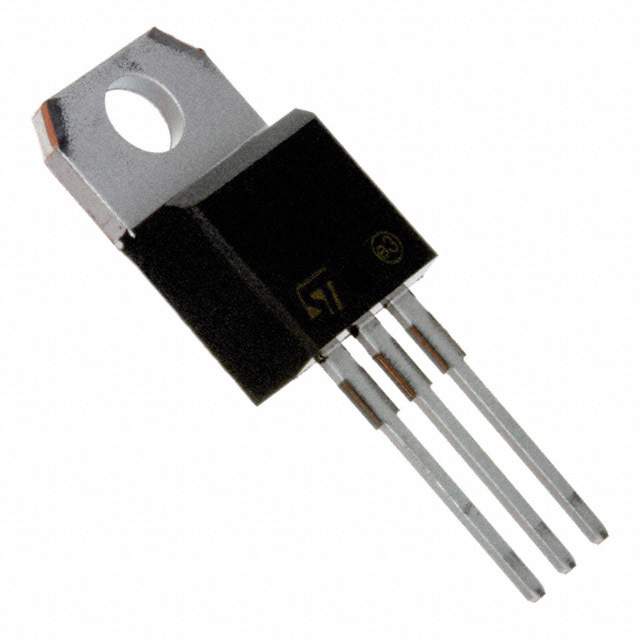

VNP5N07 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Voltage Rating (DC) | 70.0 V |
| Current Rating | 5.00 A |
| Number of Outputs | 1 Output |
| Drain to Source Resistance (on) (Rds) | 200 mΩ |
| Polarity | N-Channel |
| Power Dissipation | 31000 mW |
| Breakdown Voltage (Drain to Source) | 70.0 V |
| Continuous Drain Current (Ids) | 5.00 A |
| Rise Time | 60.0 ns |
| Output Current (Max) | 3.5 A |
| Number of Inputs | 1 Input |
| Power Dissipation (Max) | 31000 mW |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
