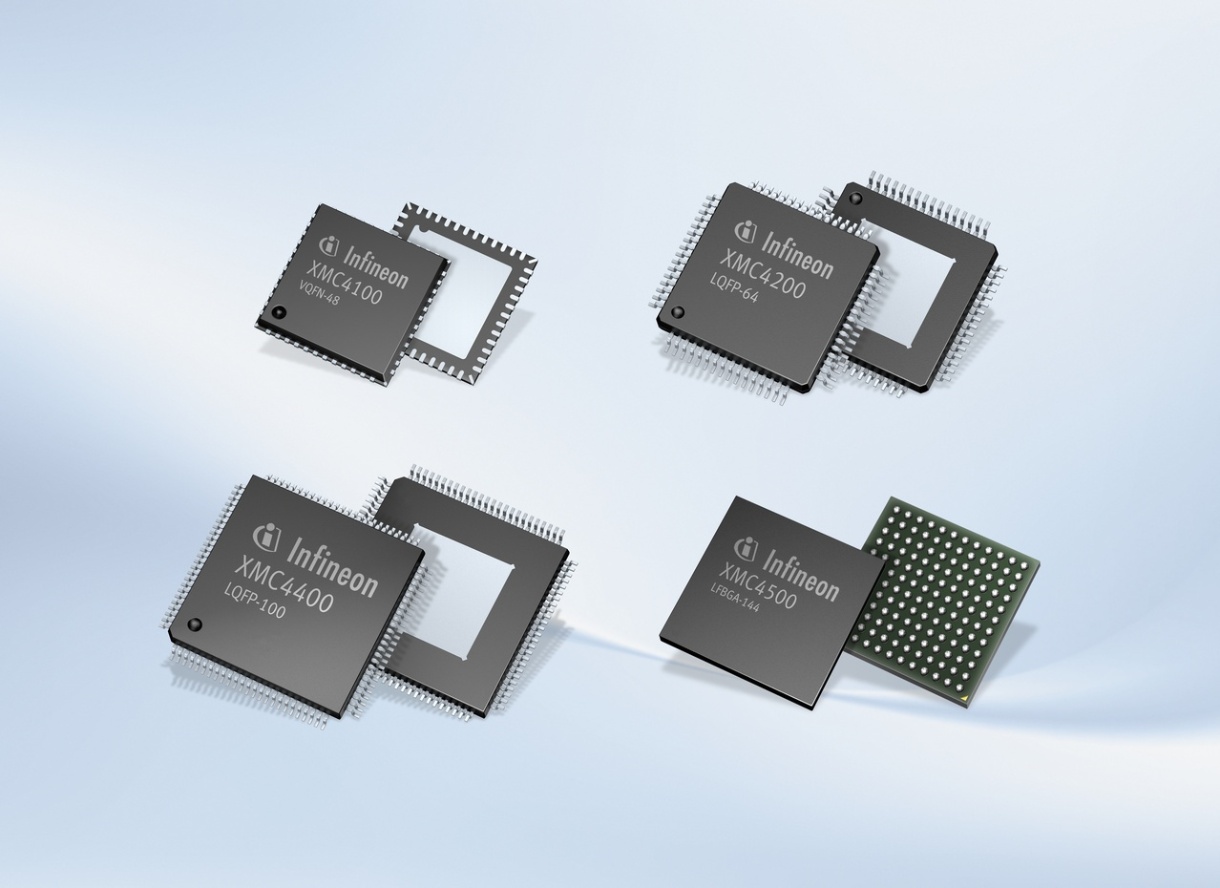

Image is for your reference only,please check specifications for details
- XMC4400F100K512BAXQMA1 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC155684536
-
Category:Microcontroller, MCU IC
-
Package:PG-LQFP-100-25
-
Datasheet:Datasheet 3D Model
-
Description:Микроконтроллер 32-бит XMC4000 ARM Cortex M4 RISC 512КБ флэш 1.3В/3.3В 100-контактный LQFP
-
Stock Locations:
-
Availability:285 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 19.89
Updated at 24/08/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description:
- XMC4400 combines Infineon"s leading-edge peripheral set with an industry-standard ARM® Cortex™-M4. As one of its key features it offers a high-resolution PWM unit with a tiny resolution of 150ps. This unique peripheral makes it especially suitable for digital power conversion in applications like solar inverters as well as SMPS and uninterruptible power supplies (UPS). Other applications are motor controllers, sense&control and IO devices for factory automation and user interface systems (HMI). XMC4400 is supported by Infineon’s integrated development platform DAVE™ 4, which makes convenient, fast and application-orientated software development possible.
- Summary of Features:
- ARM® Cortex™-M4, 120MHz, incl. single cycle DSP MAC and floating point unit (FPU)
- 8-channel DMA + dedicated DMAs for USB and Ethernet
- USB 2.0 full-speed on-the-go
- CPU Frequency: 120MHz
- eFlash: 256kB including hardware ECC
- 80kB SRAM
- Package: PG-LQFP-100
XMC4400F100K512BAXQMA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | PG-LQFP-100-25 |
| Number of Positions | 100 Position |
| RAM Memory Size | 80 kB |
| Number of Bits | 32 Bit |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 75 Input IO |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3.13V ~ 3.63V |
| Supply Voltage (Max) | 3.63 V |
| Supply Voltage (Min) | 3.13 V |
| Show | |
| Size-Length | 14 mm |
| Size-Width | 14 mm |
| Size-Height | 1.4 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
