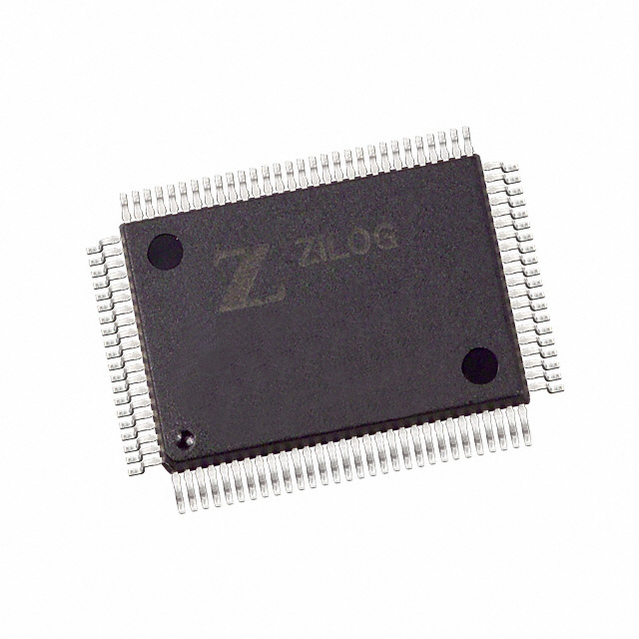

Z84C1516FSG - Zilog
Manufacturer:
Zilog
ManyChip's Part#:
MC29521140
Category:
Microprocessor IC
Package:
PQFP-100
Datasheet:
Datasheet 3D Model
Description:
Z84C15 Series 16MHz 5V SMT IPC Intelligent Peripheral Controller - VQFP-100
Stock Locations:
Availability:
254 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.89

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* High speed operation 6, 10 MHz * 16 MHz operation * Low power consumption in four operation modes: 41 mA Typ. (Run mode) 6 mA Typ. (Idle1 mode) 60 pA Typ. (Idle2 mode) 0.5 pA Typ. (Stop mode) * Wide operational voltage range (5V ± 10%). * TTL/CMOS compatible. * Z84013 features: - Z84C00 Z80 CPU - On-chip two channel SIO (Z80 SIO). - On-chip four channel Counter Timer Controller (Z80 CTC). - Built-in Clock Generator Controller (CGC). * Built-in Watch Dog Timer (WDT). * Noise filter to CLK/TRG inputs of the CTC. * 84-pin PLCC package. * Z84015 features: - All Z84013 features, plus on-chip two 8-bit ports (Z80 PIO) and 100-pin QFP package. * Z84C15 enhancements: * Power-on reset. * Addition of two chip select pins. * 32-bit CRC for Channel A of SIO. * Wait state generator. * Simplified EV mode selection. * Schmitt-trigger inputs to transmit and receive clocks of the SIO. Crystal divide-by-one mode. * 100-pin VQFP.
