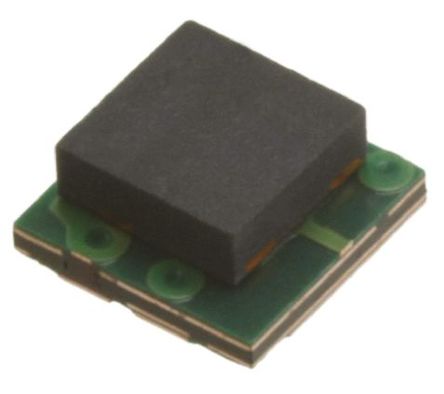

Image is for your reference only,please check specifications for details
- ZEN056V230A16LS - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC53599107
-
Category:Zener Diode, Zener
-
Package:SMD-3
-
Datasheet:Datasheet 3D Model
-
Description:POLYZEN Zener diode ZEN056V230A16LS Enclosure type (semiconductors) SMD TE Connectivity Zener voltage 5.6V Max. power (
-
Stock Locations:
-
Availability:1,937 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.41
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- ESD Suppressor Polymer 15KV 3-Pin SMD T/R
ZEN056V230A16LS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SMD-3 |
| Operating Voltage | 5.6 V |
| Capacitance | 4200 pF |
| Breakdown Voltage | 16 V |
| Number of Circuits | 1 Circuit |
| Number of Positions | 3 Position |
| Power Dissipation | 700 mW |
| Holding Current | 2.3 A |
| Clamping Voltage | 5.6 V |
| Test Current | 100 mA |
| Max Breakdown Voltage | 5.75 V |
| Zener Voltage | 5.6 V |
| Peak Pulse Power | 0.7 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 0.7 W |
| Voltage Rating | 16 V |
| Show | |
| Size-Length | 4.15 mm |
| Size-Width | 4.15 mm |
| Size-Height | 2 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
