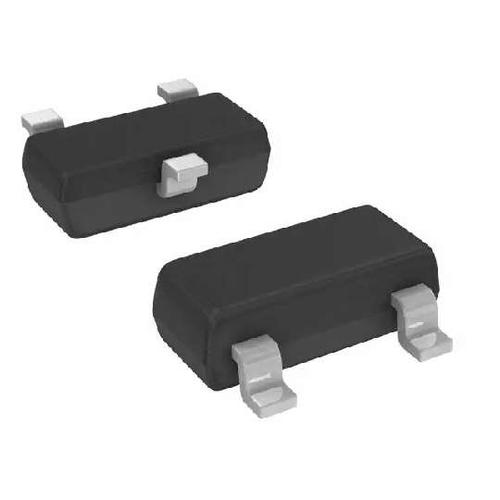

ZLLS1000TA - Diodes
Manufacturer:
Diodes
ManyChip's Part#:
MC13470950
Category:
Schottky Diode
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
ZLLS1000 Series 1.16A 40V 20uA High Current Low Leakage Schottky Diode SOT-23
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

ZLLS1000 Series 1.16 A 40 V 20 uA High Current Low Leakage Schottky Diode SOT-23

Show

ZLLS1000TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	40.0 V
Current Rating	1.60 A
Capacitance	26.0 pF
Output Current	≤1.16 A
Forward Voltage	0.66 V
Polarity	Standard
Power Dissipation	625 mW
Thermal Resistance	80℃/W (RθJL)
Reverse recovery time	5 ns
Forward Current	1.16 A
Max Forward Surge Current (Ifsm)	22 A
Maximum Forward Voltage (Max)	560mV @1A
Forward Current (Max)	1160 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Junction Temperature	150℃ (Max)
Power Dissipation (Max)	1180 mW
	Show
Size-Length	3.05 mm
Size-Width	1.4 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
