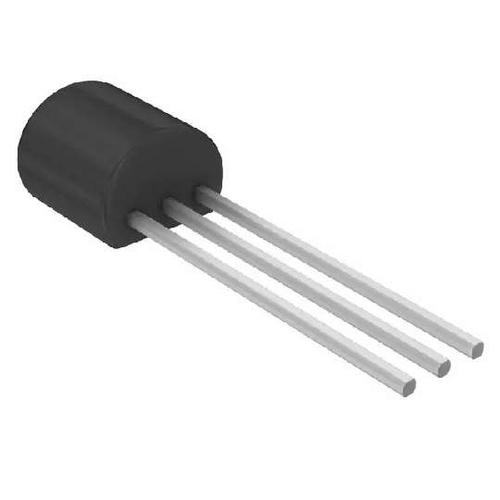

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Implement this versatile PNP ZTX549 GP BJT from Diodes Zetex into an electronic circuit to be used as a current or voltage-controlled switch or amplifier. This bipolar junction transistor"s maximum emitter base voltage is 5 V. Its maximum power dissipation is 1000 mW. This bipolar junction transistor has an operating temperature range of -55 °C to 200 °C. It has a maximum collector emitter voltage of 30 V and a maximum emitter base voltage of 5 V.

Show

ZTX549 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Frequency	100 MHz
Voltage Rating (DC)	-25.0 V
Current Rating	-1.00 A
Polarity	PNP
Power Dissipation	1 W
Gain Bandwidth Product	100 MHz
Breakdown Voltage (Collector to Emitter)	30 V
Continuous Collector Current	1A
hFE Min	100 @500mA, 2V
Input Power (Max)	1 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	1000 mW
	Show
Size-Length	4.95 mm
Size-Width	2.41 mm
Size-Height	4.95 mm
Material	Silicon
Operating Temperature	-55℃ ~ 200℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
