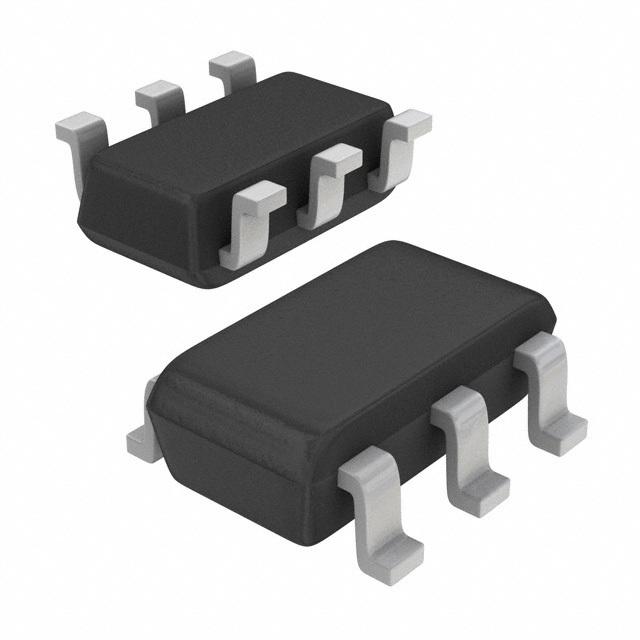

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

ZVP4525E6TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Voltage Rating (DC)	-250 V
Current Rating	-197 mA
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	10 Ω
Polarity	P-Channel
Power Dissipation	1.1 W
Threshold Voltage	1.5 V
Input Capacitance	73.0 pF
Drain to Source Voltage (Vds)	250 V
Breakdown Voltage (Gate to Source)	±40.0 V
Continuous Drain Current (Ids)	197 mA
Rise Time	3.78 ns
Input Capacitance (Ciss)	73pF @25V(Vds)
Input Power (Max)	1.1 W
Fall Time	7.85 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.1W (Ta)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
