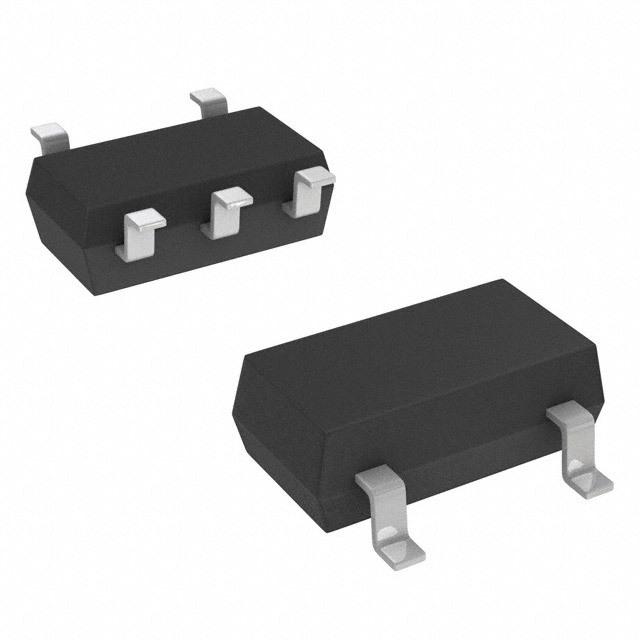

Image is for your reference only,please check specifications for details

ZXCL280E5TA - Diodes
Manufacturer:
Diodes
ManyChip's Part#:
MC19014136
Category:
Voltage Regulator
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Fixed LDO Voltage Regulator, 1.3V to 5.5V, 85mV Dropout, 2.8Vout, 150mAout, SOT-23-5
Stock Locations:
Availability:
10,204 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.67

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Don"t let unpredictable voltage levels ruin your circuit! Use this LDO ZXCL280E5TA linear regulator from Diodes Zetex to control your voltage levels! This device has a maximum power dissipation of 450 mW. Its typical dropout voltage at current is 0.14@100mA V. It has an overall accuracy of ±3 %. This voltage regulation device"s single output can produce a current up to 0.15(Min) A. Using the part will provide the power your application needs by requiring a voltage only of 2 V and not exceeding a voltage of 5.5 V. With a fixed output that has a voltage of 2.8 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.04%/mA and line regulation of 0.1%/V. Its maximum power dissipation is 450 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. The maximum dropout voltage is 0.28@100mA V. Its polarity is positive.

Show

ZXCL280E5TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Number of Outputs	1 Output
Input Voltage (DC)	7.00V (max)
Output Voltage	2.8 V
Output Current	150 mA
Number of Positions	5 Position
Power Dissipation	0.45 W
voltage rating	85 mV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.3 V
Output Current (Max)	0.15 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	450 mW
Accuracy	±3 %
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2 V
Input Voltage	5.5 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Last Time Buy
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
