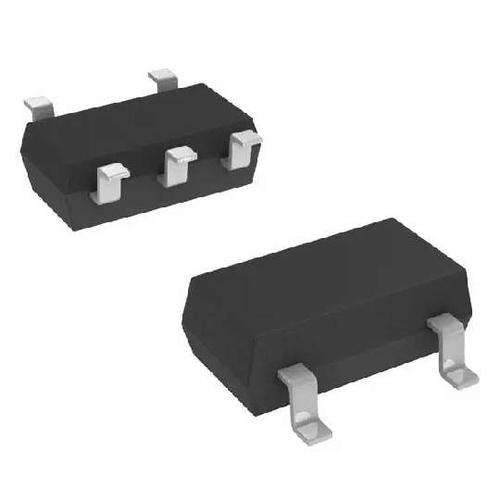

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZXLD1360ET5TA is a 30V LED Driver with integrated switch and high side current sense. This continuous mode inductive step-down converter operates from an input supply from 7 to 30V driving single or multiple series connected LEDs efficiently external adjustable output current up to 1mA. The output current can be adjusted by applying a DC voltage or a PWM waveform to the ADJ pin. 100:1 adjustment of output current is possible using PWM control. Applying a voltage of 0.2V or lower to the ADJ pin turns the output off and switches the device into a low current standby state.
Simple low parts count
Single pin on/off and brightness control using DC voltage or PWM
High efficiency (up to 95%)
40V Transient capability
Qualified to AEC-Q100 grade 1
Typical 4% output current accuracy

Show

ZXLD1360ET5TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Frequency	1 MHz
Power Rating	1 W
Number of Outputs	1 Output
Input Voltage (DC)	7.00V ~ 30.0V
Output Voltage	30 V
Output Current	1 A
Supply Current	1.00 A
Number of Positions	5 Position
Power Dissipation	1000 W
Quiescent Current	1.80 mA
Switching Frequency	1 MHz
Input Voltage (Max)	30 V
Input Voltage (Min)	7 V
Output Voltage (Max)	30 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	7V ~ 30V
Supply Voltage (Max)	30 V
Supply Voltage (Min)	7 V
Input Voltage	7V ~ 30V
	Show
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
