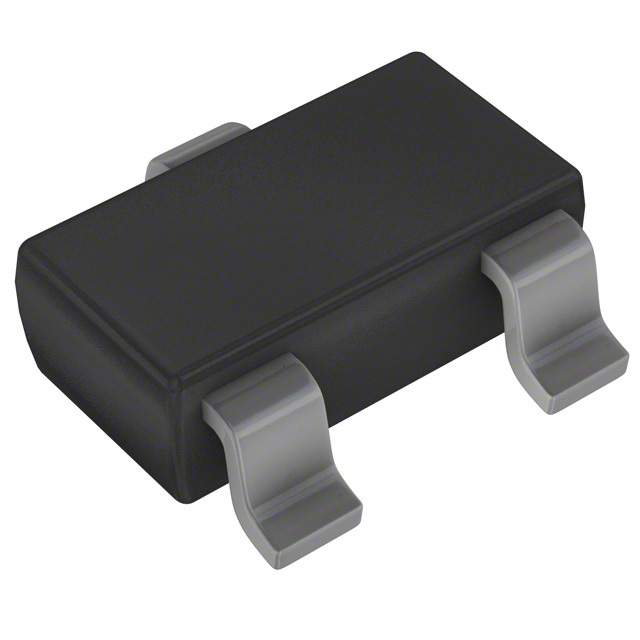

ZXMN3B14FTA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Voltage Rating (DC)	30.0 V
Current Rating	3.50 A
Drain to Source Resistance (on) (Rds)	140 mΩ
Polarity	N-Channel
Power Dissipation	1.5 W
Input Capacitance	568 pF
Gate Charge	6.70 nC
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30.0 V
Breakdown Voltage (Gate to Source)	±12.0 V
Continuous Drain Current (Ids)	3.50 A
Rise Time	4.9 ns
Input Capacitance (Ciss)	568pF @15V(Vds)
Input Power (Max)	1 W
Fall Time	9.8 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1W (Ta)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
