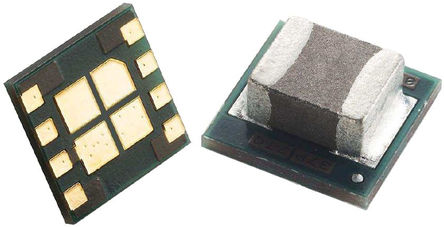

Image is for your reference only,please check specifications for details

LMZ20501SILT - TI
Manufacturer:
TI
ManyChip's Part#:
MC8747861
Category:
DC to DC Converter
Package:
SMD-8
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.7V to 5.5V Step Down Single-Out 0.8V to 3.6V 1A Nano Module 8Pin uSIP EP T/R
Stock Locations:
Availability:
247 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.73

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LMZ20501SILT is a SIMPLE SWITCHER® 2.7 to 5.5V 1A high density Nano Module Regulator capable of driving up to 1A of load from an input of up to 5.5V with exceptional efficiency and output accuracy in a very small solution size. The LMZ20501 requires only five external components and has a pin-out designed for simple, optimum PCB layout. The module is a member of Texas Instruments" SIMPLE SWITCHER® family. The SIMPLE SWITCHER® concept provides for an easy to use complete design with a minimum number of external components and the TI WEBENCH® design tool. TI"s WEBENCH tool includes features such as external component calculation, electrical simulation and WebTherm™.
Integrated inductor
±1% Feedback tolerance over-temperature
2.4µA Maximum quiescent current in shutdown
3MHz Fixed PWM switching frequency
Power good flag function
Pin-selectable switching modes
Internal compensation and soft-start
Current limit, thermal shutdown and UVLO protection
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

LMZ20501SILT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SMD-8
Number of Outputs	1 Output
Output Voltage	0.8V ~ 3.6V
Output Current	1 A
Number of Positions	8 Position
Quiescent Current	72.0 nA
Number of Regulated Outputs	1 Output
Switching Frequency	3 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	3.6 V
Output Voltage (Min)	800 mV
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.7V ~ 5.5V
	Show
Size-Length	3.5 mm
Size-Width	3.5 mm
Size-Height	1.75 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
