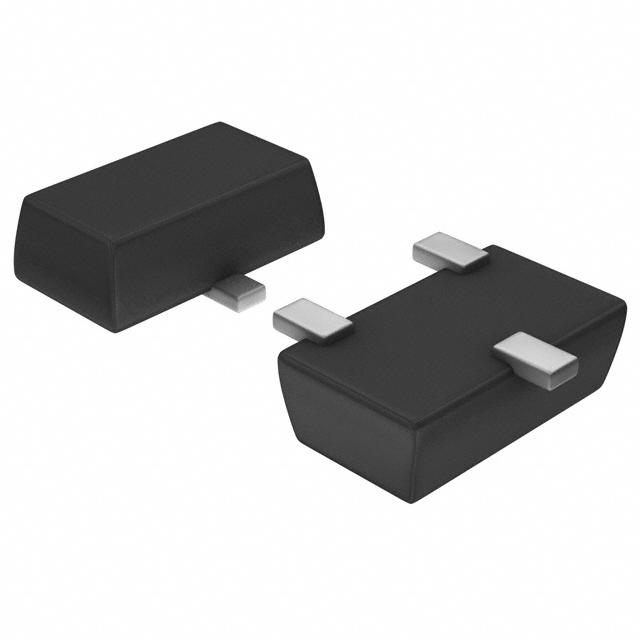

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Design various electronic circuits with this versatile PNP ZXTP07040DFFTA GP BJT from Diodes Zetex. This bipolar junction transistor"s maximum emitter base voltage is 7 V. Its maximum power dissipation is 2000 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This bipolar junction transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. It has a maximum collector emitter voltage of 40 V and a maximum emitter base voltage of 7 V.

Show

ZXTP07040DFFTA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Frequency	200 MHz
Polarity	PNP
Power Dissipation	2000 mW
Gain Bandwidth Product	200 MHz
Breakdown Voltage (Collector to Emitter)	40 V
Continuous Collector Current	3A
hFE Min	300 @10mA, 2V
hFE Max	300
Input Power (Max)	1.5 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	2000 mW
	Show
Size-Length	3 mm
Size-Width	1.7 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
