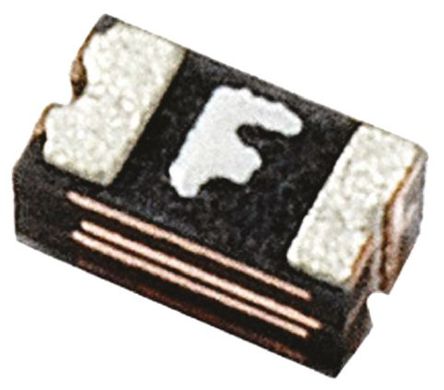

0603L010YR - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC791796
Category:
Fuse
Package:
0603
Datasheet:
Datasheet 3D Model
Description:
PTC Resettable Fuse 0.1A(hold) 0.3A(trip) 15VDC 40A 0.5W(1/2W) 1s 0.9Ω SMD Solder Pad 0603 T/R
Stock Locations:
Availability:
2,170 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.06

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 0603L010YR is a surface mount PTC Resettable Fuse with solder-plated copper terminals. This low profile resettable fuse"s compact design saves board space, compatible with high temperature solders and provides over-current protection for applications where resettable protection is desired. This 0603L series fuse supports level 1, J-STD-020C moisture sensitivity and features fast response to fault currents.
Low resistance
Fast response to fault currents
Compact design saves board space
Plug and play protection for motherboards and peripherals
-40 to 85°C Operating/storage temperature range
Operation beyond the specified rating may result in damage and possible arcing and flame.

Show

0603L010YR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package (SI)	1608
Case/Package	0603
Voltage Rating (DC)	15.0 V
Operating Voltage	15 V
Time to Trip	1 s
Current Rating	40 A
Power Dissipation	0.5 W
Resistance	6 Ω
Holding Current	100 mA
Trip Current	300 mA
Current Rating (Max)	40 A
Holding Current (Max)	100 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	15 VDC
Voltage Rating	15 VDC
Operating Voltage (Max)	15 V
	Show
Size-Length	1.8 mm
Size-Width	1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
