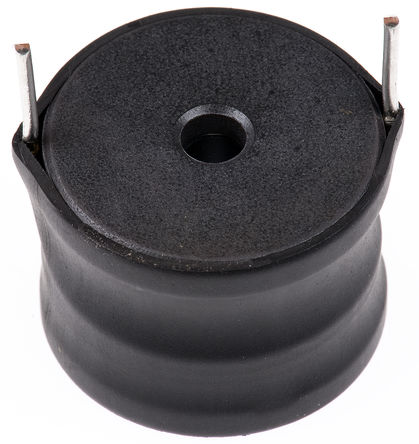

Image is for your reference only,please check specifications for details

1410478C - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC12634748
Category:
Inductor
Datasheet:
Datasheet 3D Model
Description:
MURATA POWER SOLUTIONS 1410478C Inductor, Radial Leaded, 1400 Series, 100µH, 7.8A, 7.8A, 0.04Ω, ± 10%
Stock Locations:
Availability:
69 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.43

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1410478C is a radial leaded Bobbin Core Inductor with fully tinned leads. This 1400 series high current PCB mounting hole inductor is suitable for many power supply and other general purpose filtering applications. The use of a non-magnetic screw will ensure mechanical stability. Core manufactured from high-saturation flux density material, winding is insulated by a heat-shrunk sleeve. Supports 1kHz frequency and ±10% inductance tolerance.
Low DC resistance
Low temperature dependence

Show

1410478C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Current Rating	7.8 A
Capacitance Tolerance	±10 %
Orientation	Vertical
Inductance	100 µH
Self Resonant Frequency	3.3 MHz
Q-Factor	34.0
Resistance	40 mΩ
Resonant Frequency	3.3 MHz
Inductance Tolerance	±10 %
Test Frequency	50 MHz
DC Resistance (DCR)	≤40 mΩ
Current Rating (DC)	7.8 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.04 Ω
	Show
Size-Length	32.4 mm
Size-Height	21.8 mm
Lead Length	10 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
