Description

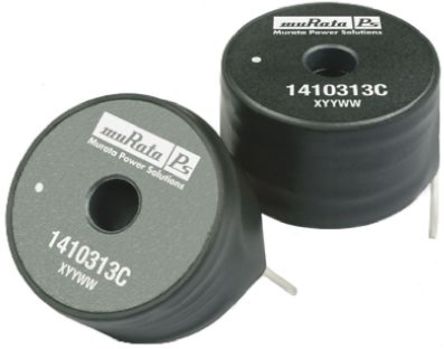

- The 1400 series Bobbin-wound Inductor with pure tin dip pin finish. It is suitable for many power supply and other general-purpose filtering applications. The use of a non-magnetic screw will ensure mechanical stability. The maximum DC current occurs when either the inductance falls to 60% of its nominal value or when its temperature rise reaches 50°C, whichever is sooner.
- Low DC resistance
- Fully tinned leads
- PCB mounting hole
- Low temperature dependence
- Backward compatible with Sn/Pb soldering systems
- -40 to 85°C Operating free air temperature range
1422509C Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Current Rating | 900 mA |
| Capacitance Tolerance | ±10 % |
| Orientation | Vertical |
| Inductance | 2.2 mH |
| Self Resonant Frequency | 0.9 MHz |
| Q-Factor | 43.0 |
| Resistance | 1 Ω |
| Resonant Frequency | 900 kHz |
| Inductance Tolerance | ±10 % |
| Test Frequency | 50 MHz |
| DC Resistance (DCR) | ≤1 Ω |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 1 Ω |
| Show | |
| Size-Length | 26.8 mm |
| Size-Height | 15.5 mm |
| Lead Length | 10.0 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
