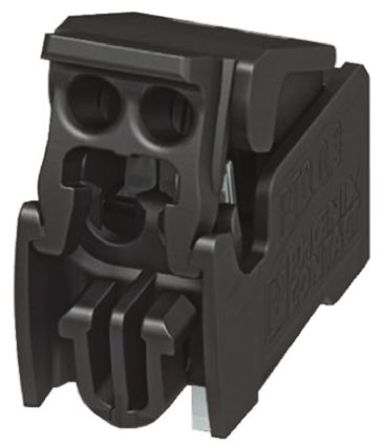

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1702610 is a 2-position black PCB Terminal Block with tin-plated solder contacts and a LCP insulator. This PTQ 0,3/ 2-2,5 THR R32 terminal black accepts 26 to 22AWG wire range.
Visual inspection of the conductor position possible
Conductor connection without pre-treatment
Space-saving and safe
Secure snap-on mechanism
UL94V-0 Flammability rating

Show

1702610 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Pin Pitch	2.5 mm
Number of Contacts	2 Contact
Wire Gauge	24 AWG
Current Rating	4 A
Number of Rows	1 Row
Number of Circuits	2 Circuit
Number of Positions	2 Position
Current Rating (Max)	4 A
Voltage Rating (Max)	160 V
Voltage Rating	160 V
Operating Voltage (Max)	160 V
	Show
Size-Length	7 mm
Size-Width	8 mm
Size-Height	8 mm
Housing Color	Black
Color	Black
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
