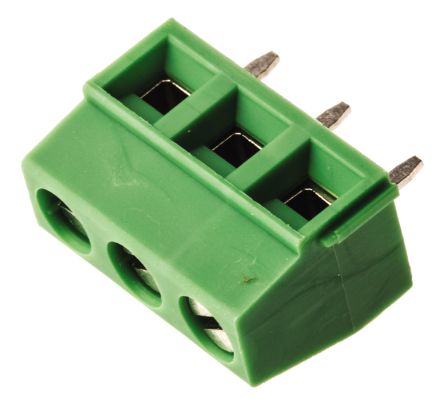

Image is for your reference only,please check specifications for details

1729131 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC1618132
Category:
Terminal Block, Connector Terminal
Package:
-
Datasheet:
Datasheet 3D Model
Description:
PHOENIX CONTACT 1729131 Wire-To-Board Terminal Block, 5.08mm, 3Positions, 26AWG, 16AWG, 1.5mm², Screw
Stock Locations:
Availability:
1,131 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.27

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1729131 from Phoenix Contact is a through hole, 3 position PCB terminal block with 5.08mm lead spacing. Terminal block is made of PA insulating material and suitable for wire size ranging from 26AWG to 16AWG.
Dimension of terminal block is 8.1mm x 10.16mm x 13.5mm (L x W x H)
Green colour terminal block
Sn solder pin surface
Hole diameter of 1.3mm
UL94 V-0 inflammability rating
CSA, SEV, GL, CCA, EAC, UL and cULus recognized
Screw connection
Right angle wire orientation

Show

1729131 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	-
Pin Pitch	5.08 mm
Number of Contacts	3 Contact
Wire Gauge	14AWG ~ 30AWG
Voltage Rating (AC)	250 V
Current Rating	13.5 A
Number of Rows	1 Row
Number of Circuits	3 Circuit
Flammability Rating	UL 94 V-0
Number of Positions	3 Position
Current Rating (Max)	13.5 A
Operating Temperature (Max)	120 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	250 V
Voltage Rating	250 V
Operating Voltage (Max)	250 V
	Show
Size-Length	15.24 mm
Size-Width	8.1 mm
Size-Height	10 mm
Housing Color	Green
Color	Green
Material	Nylon
Insulation Material	Nylon
Housing Material	Nylon
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536904000
ECCN Code	EAR99
