1N4454 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC40259300
Category:
TVS Diode
Package:
DO-204AH
Datasheet:
Datasheet 3D Model
Description:

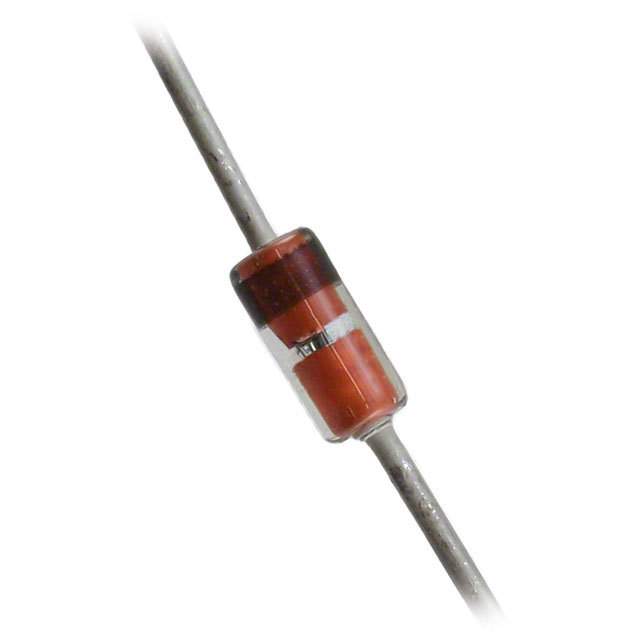

FAIRCHILD SEMICONDUCTOR 1N4454 Small Signal Diode, Single, 75V, 200mA, 1V, 4ns, 4A
Stock Locations:
Availability:
9,293 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.04

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1N4454 is a high conductance Ultrafast Diode for general use and also suitable for many different applications.
600mA Recurrent peak forward current
500mW Power dissipation
300°C/W Junction-to-ambient thermal resistance
4pF at 1MHz Total capacitance

Show

1N4454 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-204AH
Voltage Rating (DC)	75.0 V
Current Rating	200 mA
Capacitance	4.00 pF
Output Current	≤200 mA
Number of Positions	2 Position
Forward Voltage	1V @10mA
Polarity	Standard
Thermal Resistance	300℃/W (RθJA)
Reverse recovery time	4 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	4 A
Maximum Forward Voltage (Max)	1 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	Show
Size-Length	4.56 mm
Size-Width	1.91 mm
Size-Height	1.91 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
